21×9.0 / 21×10.5 Forged Monoblock Wheels for 2022 Tesla Model S (2021+ Refresh) – Matte Black Turbine Multi-Spoke with Red Lettering 5×120.65

Engineering Notes

XINGTU’s engineers want to highlight three details that define this build.

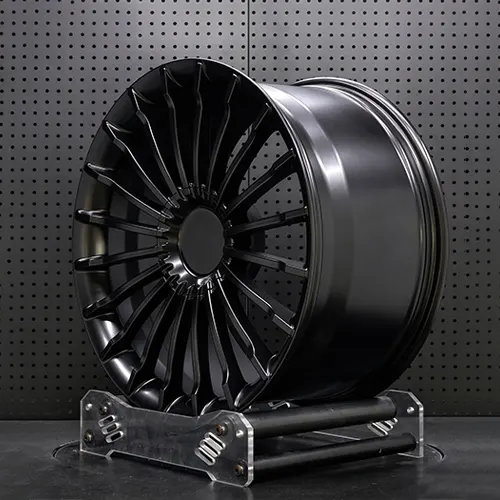

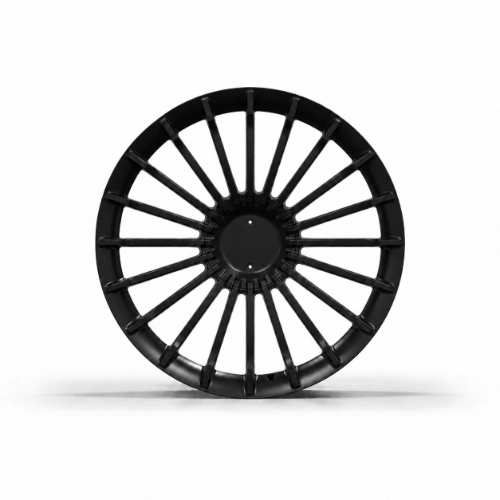

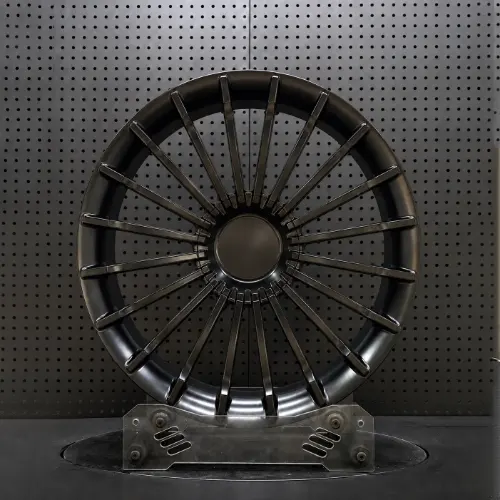

Turbine-Inspired Forged Monoblock Design

The 21-inch wheel features a dense arrangement of slender radial spokes extending from a broad central section toward the outer rim. Closely spaced openings create the distinctive turbine-style pattern, giving the wheel face a continuous, directional appearance.

The forged monoblock construction integrates the hub, spoke network and barrel into a single aluminum structure. Precision CNC machining defines the narrow spoke channels, recessed surfaces and transitions around the center without requiring a separate bolted face or decorative insert.

The staggered configuration combines 21×9.0 front wheels with wider 21×10.5 rear wheels. Both retain the same turbine-inspired styling, with individual wheel proportions suited to their respective widths.

Each finished wheel weighs 14 kg and carries a rated load capacity of 850 kg.

Matte Black Finish with Red Lettering

Matte Black covers the turbine spokes, central section, outer rim and barrel, giving the intricate wheel design a uniform, low-reflection appearance.

The narrow spoke channels and recessed surfaces create subtle variations in depth, while the matte coating reduces strong reflections across the densely arranged pattern. Consistent surface preparation and coating coverage help maintain an even finish throughout these detailed areas.

A small red “TESLA S” lettering detail along the outer rim adds a contrasting accent without interrupting the overall black design. The lettering receives separate positioning and application after the black coating has cured, followed by additional finishing and inspection.

The multi-stage surface treatment, red lettering application and final quality checks contribute to the 45-day production cycle.

Staggered Wheel Dimensions for the Tesla Model S

The front wheels measure 21×9.0 with an ET30 offset, while the rear wheels use a wider 21×10.5 configuration with ET38. Both share a 64.1 mm center bore and a 15×32×60° taper-seat mounting specification.

The different widths and offsets establish the front and rear wheel positions, allowing the turbine design to retain consistent proportions across the staggered set.

The production configuration records a 5×120.65 bolt pattern. Exact PCD compatibility must be confirmed against the intended vehicle, as the mounting dimensions of the refreshed Tesla Model S may differ from this specification. Hub engagement, brake clearance, mounting hardware and tire dimensions should also be verified before installation.

From Design to Delivery

• PCD, center bore and front/rear offset dimensions inspected
• 15×32×60° taper-seat profile checked
• Front and rear specifications verified separately
• Wheel weight verified at 14 kg
• Radial and lateral runout inspected
• Matte black sheen and red-letter alignment inspected
• Dynamic balancing completed for every wheel

Result

The completed wheel set features a distinctive turbine-inspired face, with closely arranged radial spokes extending from the broad center toward the outer rim. The dense spoke pattern creates a continuous visual flow, while the Matte Black finish highlights the recessed channels without excessive surface reflection.

Subtle red lettering adds a contrasting detail to the outer rim, giving the otherwise monochromatic design a recognizable accent. The wider 21×10.5 rear wheels complement the 21×9.0 front configuration, retaining consistent turbine styling across the set.

The finished forged monoblock wheels weigh 14 kg each and carry a rated load capacity of 850 kg per wheel.

Building a refreshed Tesla Model S or another high-performance EV that requires staggered forged wheels?

XINGTU manufactures forged wheels according to your actual hub, brake, suspension, fender and tire measurements, including 21-inch staggered configurations, high-load monoblock construction and personalized color details.

 MOQ 1 set, DDP worldwide. Send your vehicle and tire specifications for a free fitment check.

Front & Rear Wheel Specifications

The 21-inch forged wheel set features 21×9.0 ET30 front wheels and 21×10.5 ET38 rear wheels. Both share a 64.1 mm center bore and 15×32×60° taper-seat specification. The featured production configuration records a 5×120.65 bolt pattern, which requires verification against the vehicle's actual hub and mounting dimensions before installation.

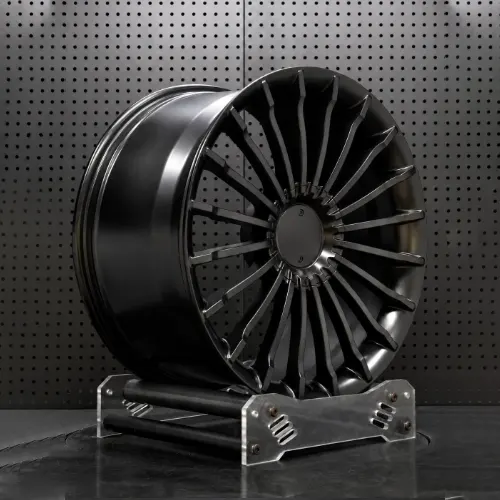

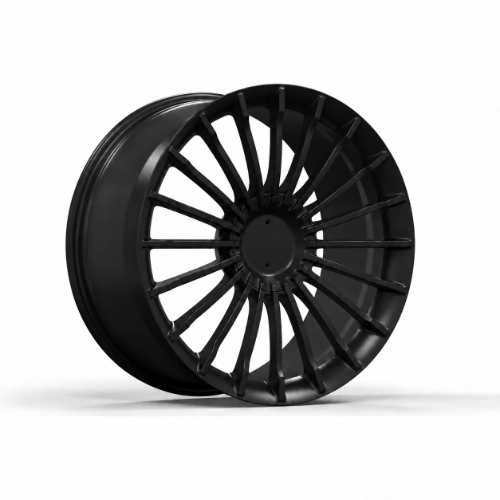

Turbine Multi-Spoke Monoblock Construction

The wheel combines a broad central section, narrow radial spokes and deep barrel in a single forged aluminum body. Precision-machined openings between the spokes create the turbine-inspired pattern, while the staggered front and rear widths maintain a coordinated design.

Matte Black & Red Lettering Finish

The Matte Black coating provides a consistent low-gloss appearance across the wheel face, recessed spokes and barrel. Red “TESLA S” lettering adds a subtle outer-rim detail, with separate application and finishing stages to maintain clean edges and consistent positioning.

FAQs

1. Will These 21-Inch Forged Wheels Fit My Tesla Model S?

These wheels feature 21×9.0 front and 21×10.5 rear sizes, with ET30 and ET38 offsets. The featured wheel specification uses a 5×120.65 bolt pattern, while the refreshed Model S commonly uses 5×120. These bolt patterns are not interchangeable. Please confirm the exact PCD, hub dimensions, mounting hardware and brake clearance before installation.

2. Why Do the Front and Rear Wheels Have Different Widths?

The staggered configuration uses a 9.0-inch front wheel and a wider 10.5-inch rear wheel, both with a 21-inch diameter. This allows different front and rear tire widths while maintaining the same turbine-inspired spoke design across the set.

3. What Are the Weight and Load Rating of These Wheels?

Each wheel weighs 14 kg and carries a rated load capacity of 850 kg. The forged monoblock construction integrates the center, radial spokes and barrel into a single aluminum structure without separate bolted joints.

4. What Wheel Bolts Are Required?

The wheel features a 15×32×60° taper-seat specification. Mounting hardware must match the wheel's seat geometry and the vehicle's thread requirements. The bolt pattern and center bore must also be confirmed before installation.

5. How Should I Maintain the Matte Black Finish and Red Lettering?

Clean the wheels with a mild, pH-neutral wheel cleaner and a soft microfiber cloth. Avoid abrasive compounds, aggressive chemicals and gloss-enhancing polishes that may affect the matte appearance. Use extra care around the red lettering and narrow spoke openings.

6. How Long Does Production Take?

The production lead time for this Matte Black forged monoblock wheel configuration is approximately 45 days after the design and specifications are confirmed. The schedule includes CNC machining, surface finishing, red lettering application, dimensional inspection and dynamic balancing. Shipping time varies by destination.
