16×8.0 Forged Monoblock Wheels for 2023 Mazda MX-5 RF GT (ND) – Bright Chrome Electroplated 5-Spoke with Decorative Bolts 4×100

Engineering Notes

XINGTU’s engineers want to highlight three details that define this build.

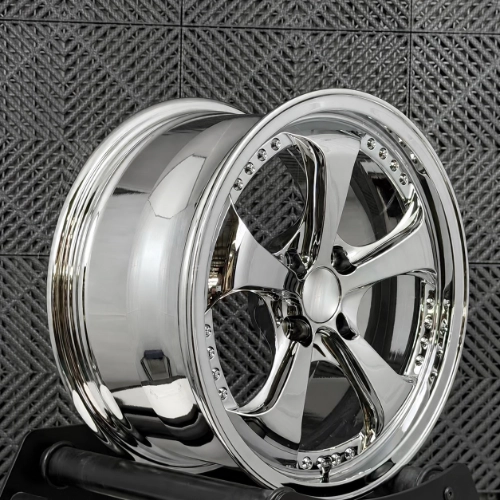

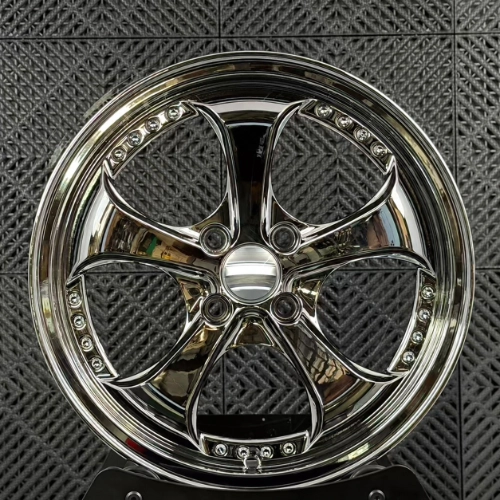

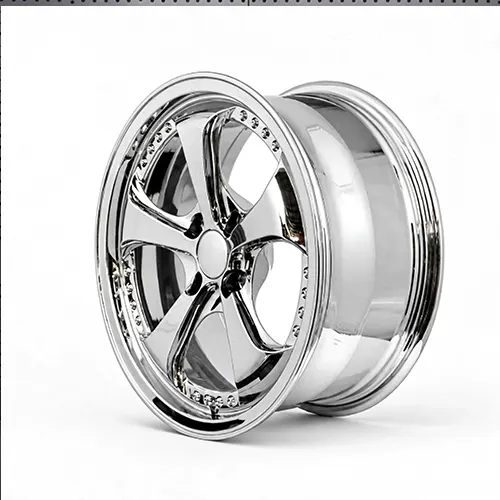

Sculpted Five-Spoke Forged Monoblock Design

The 16×8.0 wheel features five broad, sculpted spokes extending from the central hub toward the outer rim. Curved spoke edges and open sections give the design a distinctive sense of depth, while grouped decorative bolts near the outer spoke sections introduce additional detail to the classic five-spoke layout.

The center, spokes and barrel are CNC-machined from a single forged aluminum blank, forming a continuous monoblock structure without separate bolted rim components. The decorative bolts complement the wheel's appearance rather than serving as structural fasteners.

The finished wheel weighs 8 kg and carries a rated load capacity of 800 kg per wheel. Its compact diameter and open spoke arrangement complement the proportions of the Mazda MX-5 while retaining the sculpted design of a custom forged wheel.

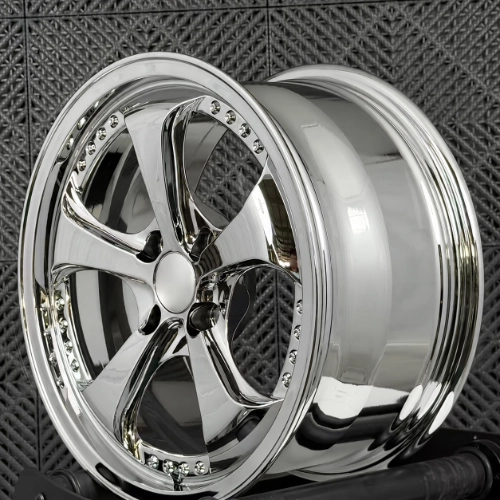

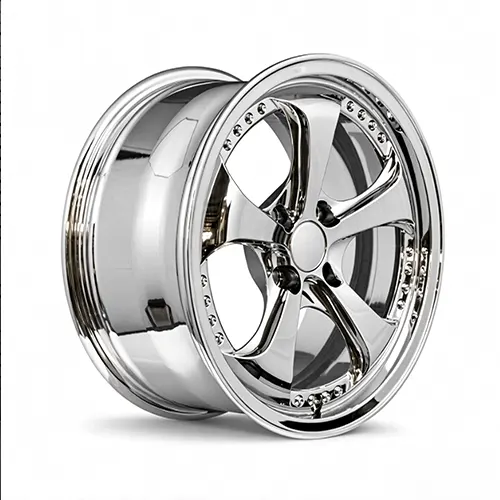

Bright Chrome Electroplated Finish

Bright Chrome electroplating gives the wheel a mirror-like metallic surface, bringing out the smooth curves, raised spoke sections and detailed outer-rim features.

Unlike conventional silver paint, the electroplated finish reflects its surroundings across the wheel face and barrel. The curved spokes and recessed areas create variations in reflection, making the surface geometry visible from different viewing angles.

Achieving this reflective appearance requires careful polishing and surface preparation before electroplating. The finishing process includes cleaning, surface activation and metallic plating, followed by appearance inspection to check the completed surface.

The additional polishing, electroplating and decorative-bolt installation stages contribute to the 45-day production schedule.

Precision Fitment for the Mazda MX-5 RF GT

The wheel measures 16×8.0 with an ET38 offset, 4×100 bolt pattern and 54.1 mm center bore. Its mounting configuration features a 15×32×60° taper-seat specification.

These dimensions establish the wheel's mounting geometry for the 2023 Mazda MX-5 RF GT (ND). The 16-inch diameter retains the compact proportions of the vehicle, while the 8-inch width and ET38 offset define its position within the available wheel space.

Brake-caliper clearance, suspension geometry, tire dimensions and mounting hardware should be checked against the vehicle's specific configuration before installation.

From Design to Delivery

• PCD, center bore and ET dimensions inspected
• 15×32×60° taper-seat profile checked
• Wheel weight verified at 8 kg
• Radial and lateral runout inspected
• Five-spoke machining and decorative-bolt positioning checked
• Electroplated surface inspected for polishing waves, pits and coating defects
• Dynamic balancing completed for every wheel

Result

The completed wheel features a sculpted five-spoke face with smooth, curved transitions and decorative bolt details that add definition around the outer sections. The open spoke layout preserves a clean appearance, allowing the chrome finish to remain the main visual feature.

Bright Chrome electroplating creates continuous reflections across the spokes, center and barrel, bringing out the wheel's three-dimensional contours from different angles. The finished 16×8.0 forged monoblock wheel weighs 8 kg and carries a rated load capacity of 800 kg, completing a distinctive custom wheel configuration for the 2023 Mazda MX-5 RF GT.

Building a Mazda MX-5 Miata RF, Roadster or another customized ND-platform sports car?

XINGTU manufactures forged wheels according to your actual brake, suspension, fender and tire measurements, including lightweight 16-inch fitments, custom offsets, monoblock construction and chrome electroplated finishes.

MOQ 1 set, DDP worldwide. Send your vehicle and tire specifications for a free fitment check.

Wheel Dimensions & Mounting Specifications

The wheel features a 16×8.0 size, ET38 offset, 4×100 bolt pattern and 54.1 mm center bore. A 15×32×60° taper-seat specification completes the mounting geometry. These dimensions apply to the featured Mazda MX-5 RF GT project, with installation requirements dependent on the vehicle's brake, suspension and tire configuration.

Forged Monoblock with Decorative Bolts

The five-spoke center and barrel form a single forged aluminum structure. Grouped decorative bolts near the outer spoke sections add a detailed custom appearance without connecting separate structural wheel components. Each finished wheel weighs 8 kg and has a rated load capacity of 800 kg.

Bright Chrome Electroplated Surface

The wheel features a reflective chrome electroplated finish across the spokes, center, outer rim and barrel. Detailed polishing and surface preparation create a smooth foundation for the plating, highlighting the curved spoke geometry and machined details.

FAQs

1. Will These 16-Inch Forged Wheels Fit My Mazda MX-5 ND?

These wheels feature a 16×8.0 size, ET38 offset, 4×100 bolt pattern and 54.1 mm center bore. Fitment depends on your MX-5's brake configuration, suspension setup, tire dimensions and mounting hardware. Confirm the available clearance and tire compatibility before installation.

2. How Much Does Each Wheel Weigh?

Each finished wheel weighs 8 kg and has a rated load capacity of 800 kg. The forged monoblock construction integrates the center, five spokes and barrel into a single aluminum structure.

3. Are the Decorative Bolts Part of the Wheel's Structural Assembly?

No. The bolts near the outer spoke sections are decorative details. The wheel uses one-piece forged monoblock construction, with no separate bolted center or multi-piece rim assembly.

4. What Makes the Bright Chrome Finish Different from Silver Paint?

Bright Chrome electroplating creates a highly reflective metallic surface rather than the more uniform appearance of conventional silver paint. The mirror-like finish highlights the curved spokes, machined contours and outer-rim details.

5. What Wheel Nuts Are Required for Installation?

The wheel features a 15×32×60° taper-seat specification. Mounting hardware must match the wheel's seat profile and your vehicle's thread requirements. Check the nut dimensions, hub fit and contact surfaces before installation.

6. How Long Does Production Take?

The production lead time for this forged monoblock wheel configuration is approximately 45 days after design and specifications are confirmed. The process includes CNC machining, surface polishing, chrome electroplating, decorative bolt installation and final quality inspection. Shipping time varies by destination.
