17×9.0 Forged Monoblock Wheels for 1997 Lexus LX 450 (FZJ80) – Raw Aluminum Multi-Spoke Design with Clamping Ring 6×139.7

Engineering Notes

XINGTU’s engineers want to highlight three details that define this build.

Forged Monoblock Body with Separate Clamping Ring

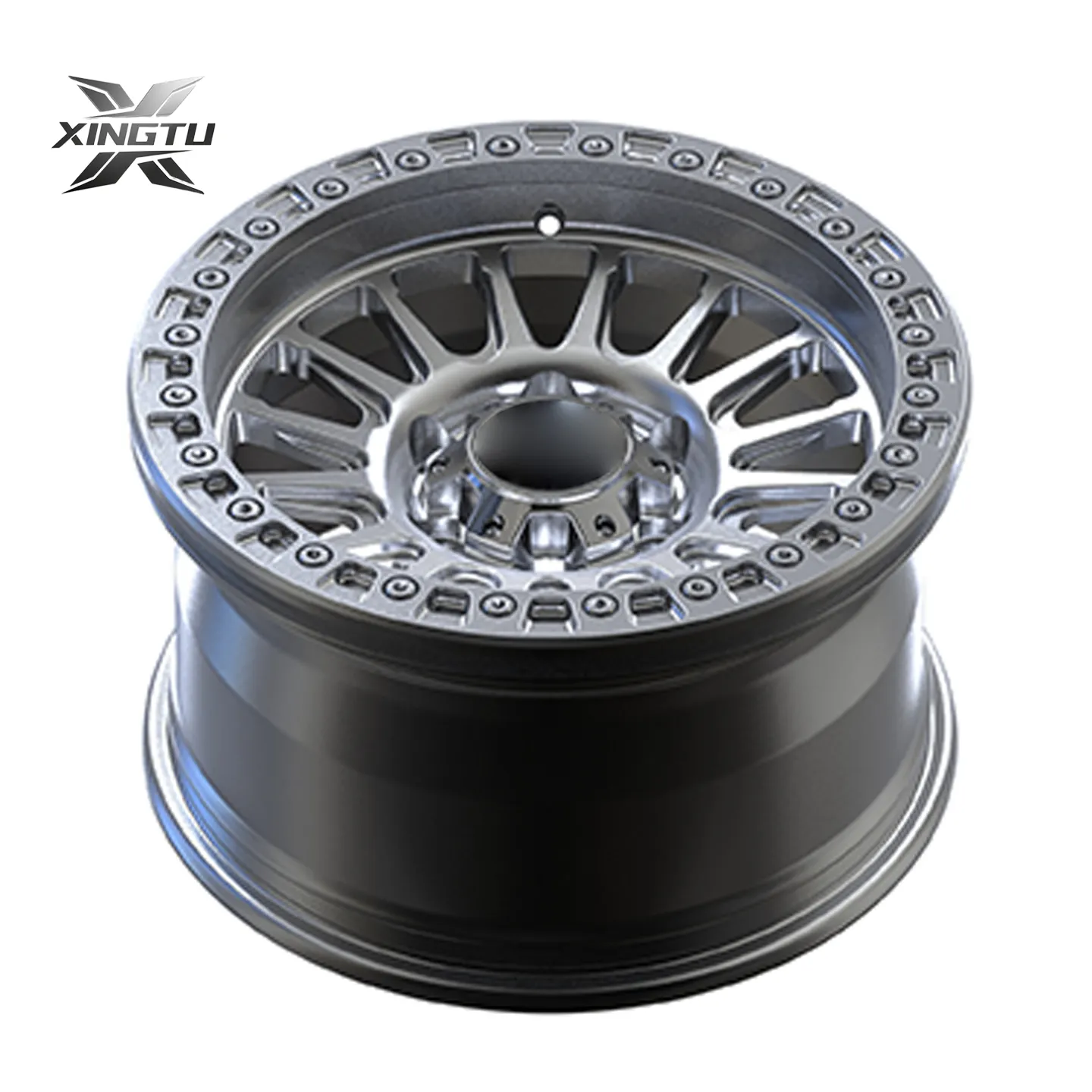

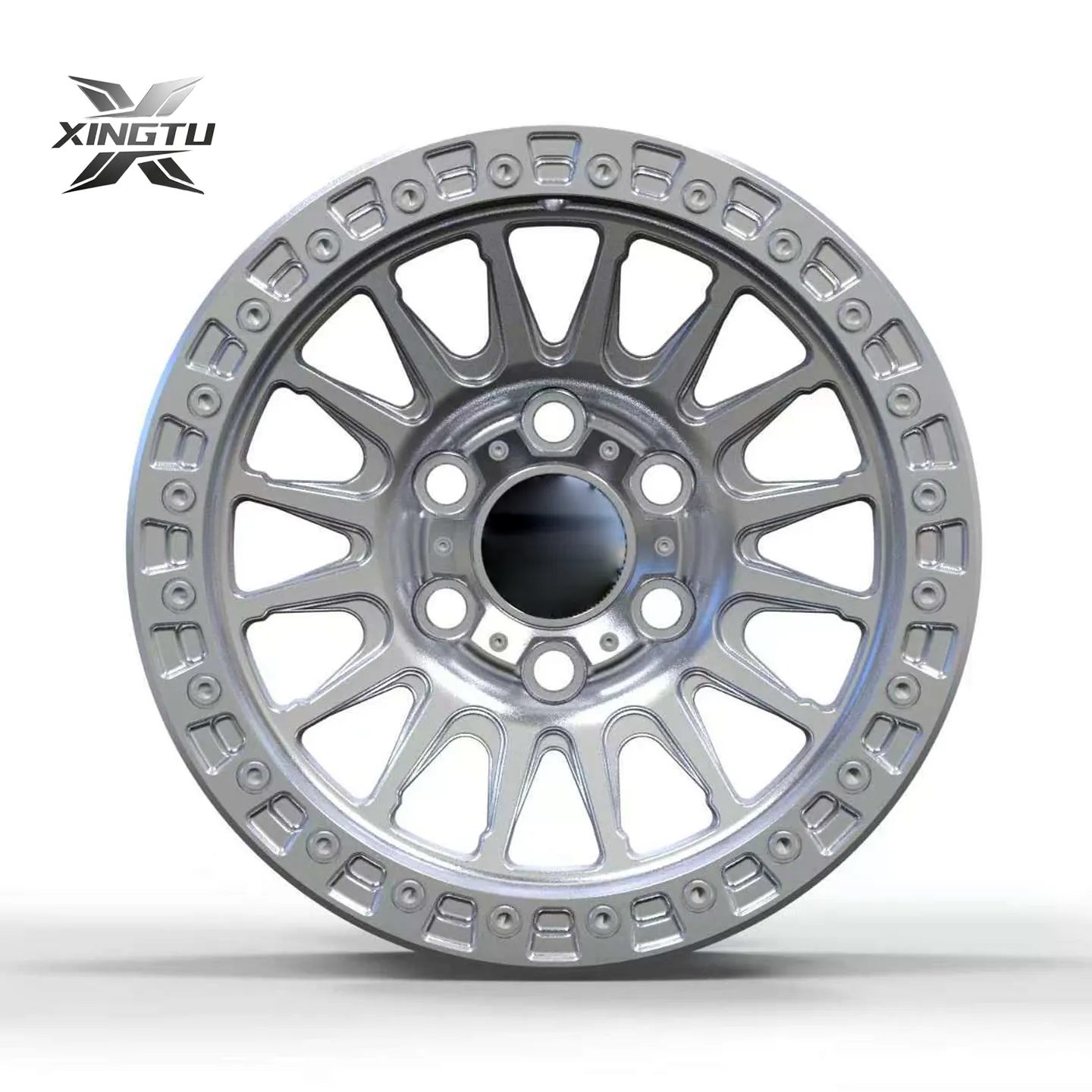

The 17×9.0 wheel combines a forged monoblock body with a separate aluminum clamping ring around the outer perimeter. The multi-spoke center features closely arranged spokes extending from the six-lug hub toward the rim, creating an intricate pattern of open sections and machined contours.

The center, spokes and barrel form a continuous forged aluminum structure, while the independently machined clamping ring adds another layer of mechanical detail. Precisely positioned fastener openings and mating surfaces allow the ring to align with the wheel body, giving the finished assembly its distinctive off-road appearance.

The wheel weighs 11.4 kg and carries a rated load capacity of 1,200 kg per wheel.

Raw Aluminum Finish & CNC-Machined Details

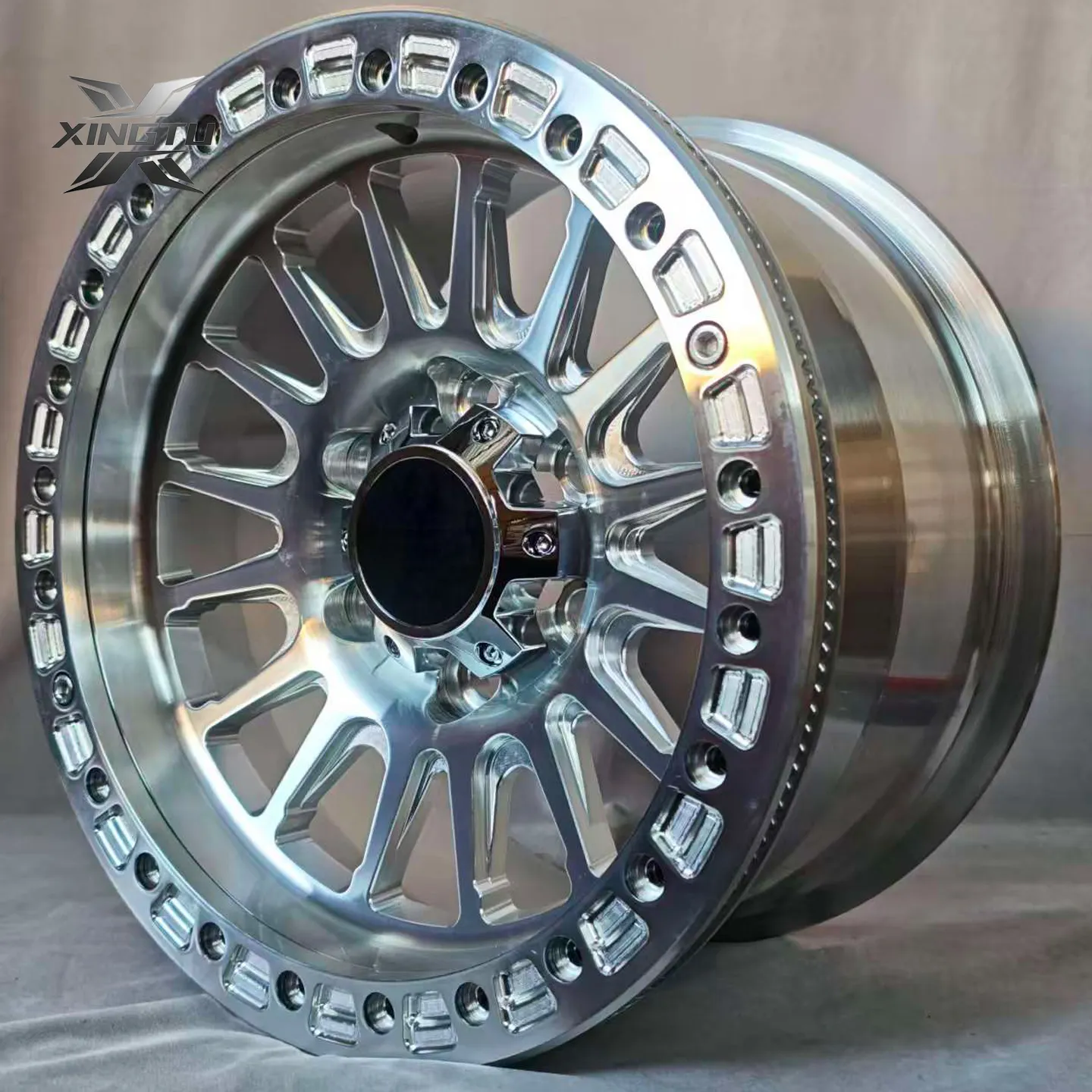

The raw aluminum finish reveals the natural metallic character of the wheel, with visible machining textures across the multi-spoke center, outer ring and barrel. Unlike painted finishes, the exposed aluminum surface allows the precise contours and directional machining lines to remain part of the design.

The narrow spoke openings, recessed lug areas and clamping-ring pockets feature detailed transitions that reflect light differently across the wheel face. Consistent machining and surface preparation maintain a coordinated appearance between the main wheel body and separate aluminum ring.

The ring's independent machining, surface finishing and assembly contribute to the 45-day production cycle.

Off-Road Wheel Specifications for the Lexus LX450

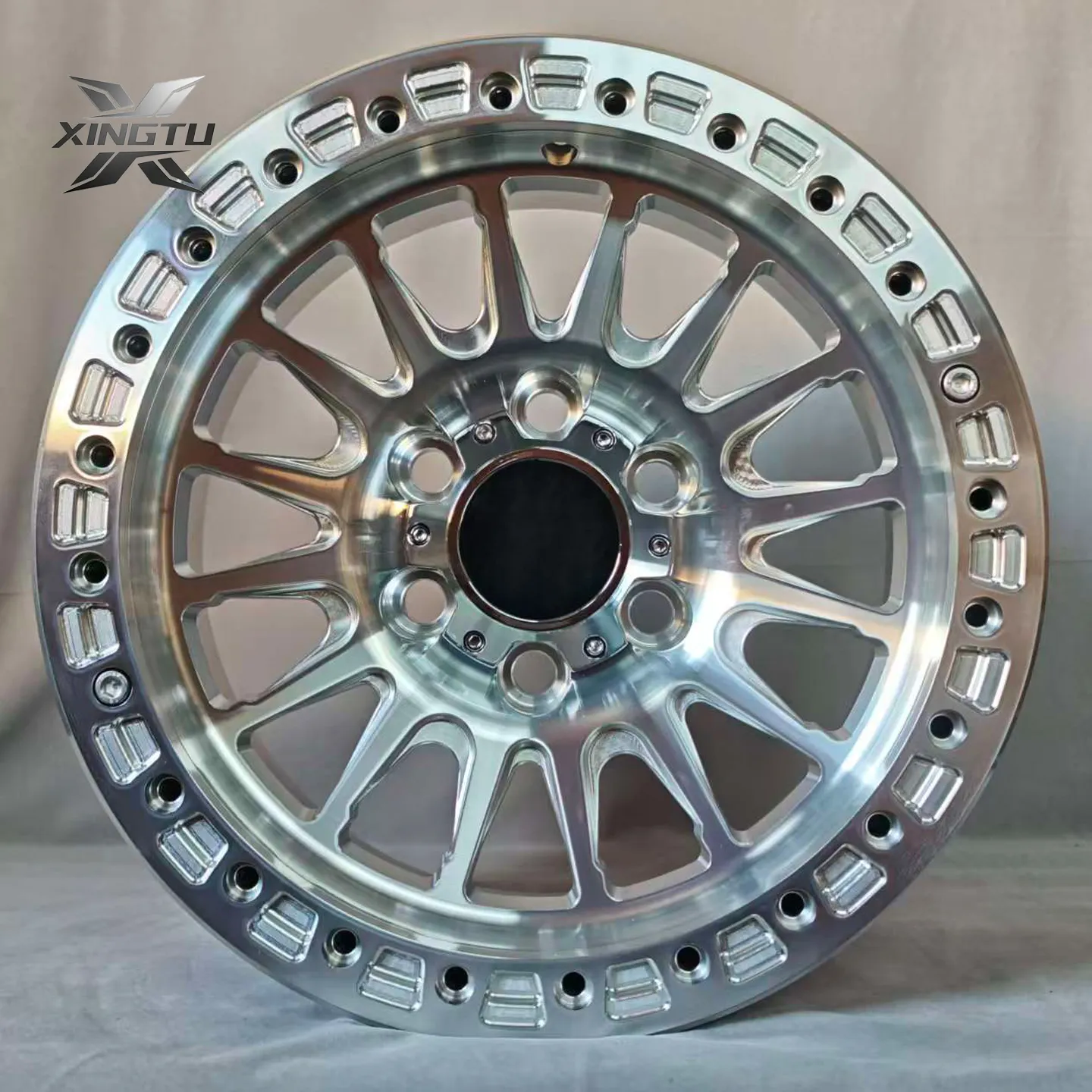

Produced for a 1997 Lexus LX450 (FZJ80), the wheel features a 17×9.0 size, 6×139.7 bolt pattern and 106.1 mm center bore. The mounting configuration includes a 22.5×38 flat-seat specification.

The six-lug arrangement, wide barrel and separate clamping ring give the wheel its characteristic off-road construction. These production dimensions define the featured Lexus LX450 configuration, with final compatibility dependent on the vehicle's mounting hardware, brake clearance and tire setup.

From Design to Delivery

• 17×9.0 wheel dimensions inspected
• 6×139.7 PCD and 106.1 mm center bore checked
• 22.5×38 flat-seat profile inspected
• Wheel weight verified at 11.4 kg
• Radial and lateral runout checked
• Multi-spoke geometry and lug recesses inspected
• Clamping-ring interface and perimeter fastener locations checked
• Raw aluminum machining marks and edge transitions inspected
• Dynamic balancing completed for every wheel

Result

The completed wheel brings together a finely machined multi-spoke center and a separate aluminum clamping ring, creating a distinctive mechanical appearance suited to the Lexus LX450's classic off-road character.

The raw aluminum surfaces reveal detailed machining patterns across the spokes, outer-ring pockets and barrel. Exposed perimeter fasteners further define the ring construction, while the 17×9.0 forged monoblock body maintains the proportions of a wide off-road wheel.

With a finished weight of 11.4 kg and a rated load capacity of 1,200 kg per wheel, the completed assembly combines the project's structural specifications with its detailed raw aluminum design.

Planning a custom forged wheel set for a Lexus LX 450 or another 4×4 platform?

 XINGTU can develop forged monoblock wheels around your vehicle data, brake clearance, tire setup and intended use. Custom sizes, center bores, lug-seat profiles, clamping-ring structures and raw aluminum finishes are available.

MOQ 1 set, DDP worldwide. Send your vehicle and tire data for a free fitment check.

Wheel Dimensions & Mounting Specifications

This 17×9.0 forged wheel features a 6×139.7 bolt pattern, 106.1 mm center bore and 22.5×38 flat-seat mounting configuration. These dimensions correspond to the featured 1997 Lexus LX450 (FZJ80) wheel project.

Forged Wheel & Clamping Ring Assembly

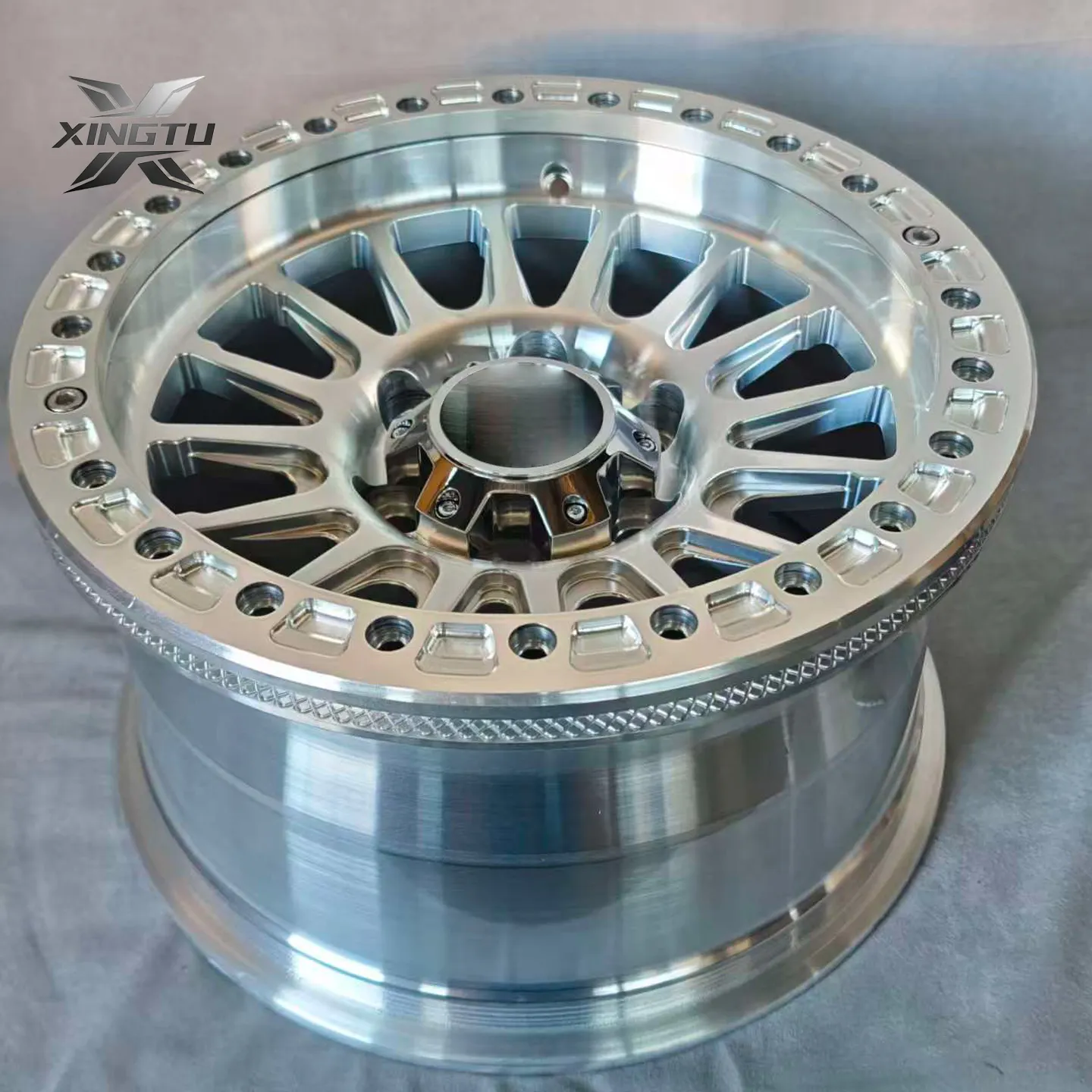

The forged monoblock wheel body integrates the multi-spoke center and barrel, with a separate aluminum clamping ring mounted around the perimeter. The ring features individually machined fastener positions and mating surfaces for alignment with the wheel body.

Raw Aluminum Surface Finish

The wheel body and clamping ring retain a raw aluminum appearance that highlights the CNC-machined metal surfaces. Directional machining textures and clean edge transitions remain visible across the spokes, lug recesses and outer-ring details.

FAQs

1. Will These 17-Inch Forged Wheels Fit My Lexus LX450?

These wheels feature a 17×9.0 size, 6×139.7 bolt pattern and 106.1 mm center bore. Fitment depends on your LX450's hub dimensions, mounting hardware, brake clearance and tire specifications. Confirm the wheel offset and vehicle clearances before installation.

2. What Is the Weight and Load Rating of Each Wheel?

Each wheel weighs 11.4 kg and has a rated load capacity of 1,200 kg. The design combines a forged monoblock aluminum wheel body with a separate outer clamping ring.

3. What Is the Purpose of the Separate Aluminum Clamping Ring?

The separate ring forms part of the wheel's outer assembly and adds a distinctive mechanical detail to the multi-spoke design. Its machined pockets and perimeter fasteners create a defined ring structure around the wheel face. Any specific tire-bead retention function requires confirmation for the intended application.

4. What Makes the Raw Aluminum Finish Different?

Raw aluminum retains the visible CNC-machined texture rather than covering the surface with colored paint. The finish highlights the natural metallic appearance, spoke contours and detailed machining around the outer ring.

5. What Mounting Hardware Does This Wheel Require?

The wheel features a 22.5×38 flat-seat mounting specification. Use compatible hardware that matches the wheel seat and vehicle mounting requirements. Check the fastener dimensions, hub fit and mounting surfaces before installation.

6. How Long Does Production Take?

The production lead time for this forged wheel and separate clamping-ring configuration is approximately 45 days after specifications are confirmed. The schedule includes CNC machining, ring production, assembly checks and final inspection. Shipping time varies by destination.
