22×10.5 Forged Monoblock Wheels for 2013 Jeep Grand Cherokee 5.7L V8 (WK2) – Gloss Silver Deep-Concave 5-Spoke 5×127

Engineering Notes

XINGTU’s engineers want to highlight three details that define this build.

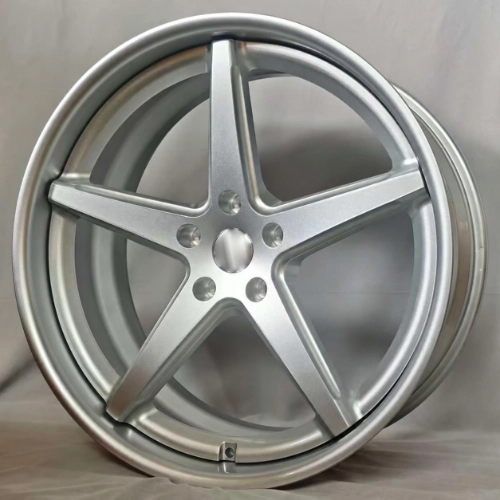

Deep-Concave Five-Spoke Construction

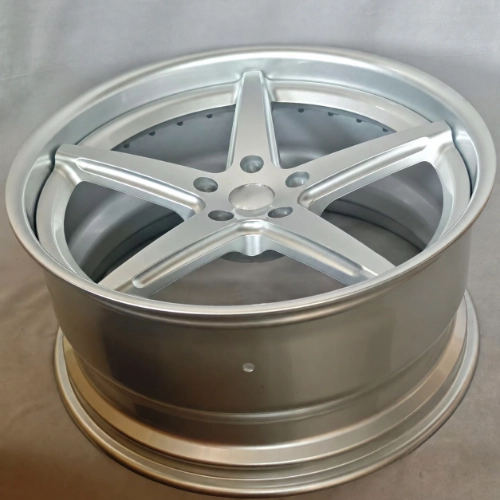

The wide 22×10.5 wheel features five substantial spokes extending from a recessed center toward the outer rim. Deeply machined channels follow the spoke surfaces, adding definition to the clean five-spoke layout, while the stepped rim provides a distinct transition between the wheel face and barrel.

Large openings between the spokes expose the inner wheel area and emphasize the concave profile. The spoke arrangement retains broad sections around the hub and outer rim, combining an open appearance with the substantial proportions of a 22-inch SUV wheel.

The forged monoblock construction integrates the center, spokes and barrel into a continuous aluminum body without separate structural rim joints. Each finished wheel weighs 15.6 kg and carries a stated load rating of 1,000 kg.

Gloss Silver Finish & Surface Details

Gloss Silver gives the wheel a consistent metallic appearance across the five-spoke face, machined channels, outer rim and barrel. The reflective surface highlights the difference in depth between the broad spoke sections and recessed center.

The finish consists of a silver color coating protected by a transparent gloss clear coat. Unlike raw polished aluminum or chrome electroplating, the metallic appearance comes from the coated surface rather than exposed or plated metal.

The sculpted spoke channels and stepped rim introduce several changes in surface angle, making even coating coverage and consistent gloss important to the finished appearance. The clear coat provides a protective layer against routine exposure to road moisture, brake dust and cleaning products.

Wheel Dimensions & WK2 Fitment

Produced for a 2013 Jeep Grand Cherokee 5.7L V8 (WK2), the wheel measures 22×10.5 with an ET28 offset and 5×127 bolt pattern. The production record specifies a 71.6 mm center bore and 15×34×60° taper-seat mounting profile.

The combination of wheel width and offset establishes the mounting position of the wide barrel, while the deep-concave center gives the wheel its distinctive face profile.

These dimensions describe the completed WK2 wheel configuration rather than a universal replacement specification. The recorded 71.6 mm center bore should be checked against the actual vehicle hub, as commonly published WK2 specifications list 71.5 mm. Brake clearance, suspension geometry, tire dimensions and compatible mounting hardware also require confirmation before installation.

From Design to Delivery

• 22×10.5 wheel dimensions inspected
• ET28 offset verified
• 5×127 PCD and 71.6 mm center bore checked
• 15×34×60° taper-seat profile inspected
• Finished wheel weight confirmed at 15.6 kg
• Radial and lateral runout checked
• Five-spoke contours and deep-concave profile inspected
• Gloss Silver coating coverage and surface consistency checked
• Dynamic balancing completed for each wheel

Result

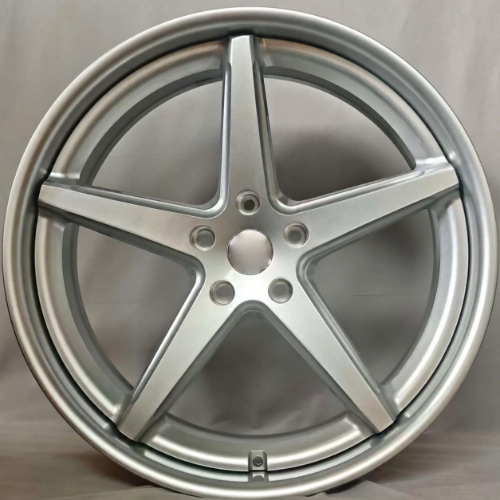

The finished wheels bring a clean five-spoke design to the substantial proportions of the Jeep Grand Cherokee WK2. Broad spokes extend from the recessed hub toward the stepped outer rim, with machined channels adding depth and definition to the open wheel face.

The Gloss Silver finish gives the spokes, rim and barrel a coordinated metallic appearance, allowing the sculpted details to remain visible from different angles. The completed 22×10.5 forged monoblock wheel retains its distinctive deep-concave profile, with a recorded weight of 15.6 kg and a rated load capacity of 1,000 kg.

Building a Jeep Grand Cherokee WK2, Dodge Durango or another customized 5×127 SUV?

XINGTU manufactures forged wheels according to your actual brake, suspension, fender and tire measurements, including wide 22-inch fitments, high-load monoblock construction and custom finishes.

MOQ 1 set, DDP worldwide. Send your vehicle and tire specifications for a free fitment check.

Wide Wheel Configuration

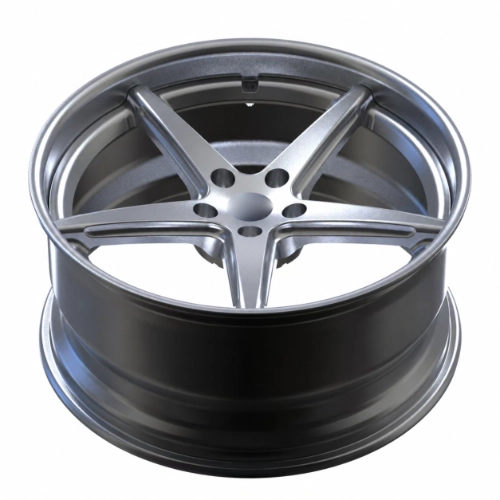

The completed wheel measures 22×10.5 with an ET28 offset, 5×127 bolt pattern and 71.6 mm center bore. Its wide barrel and deep-concave face create the distinctive proportions of the featured Jeep Grand Cherokee WK2 configuration.

Forged Monoblock & Load Rating

The center, five-spoke face and barrel form a single forged aluminum structure. Open spoke sections and machined channels give the wheel its sculpted appearance, while the finished wheel weighs 15.6 kg and carries a rated load capacity of 1,000 kg.

Mounting & Vehicle Compatibility

The wheel features a 15×34×60° taper-seat specification that requires compatible mounting hardware. The recorded center bore, wheel offset and barrel dimensions should be checked against the actual vehicle, including hub engagement, brake clearance, suspension geometry and tire fitment.

1. Are These 22-Inch Forged Wheels Compatible with Every Jeep Grand Cherokee WK2?

The featured wheels were produced for a 2013 Jeep Grand Cherokee 5.7L V8 (WK2). Their 22×10.5 size and ET28 offset represent this particular wheel configuration. Compatibility depends on the vehicle's hub dimensions, brake clearance, suspension setup and selected tire size.

2. What Are the Weight and Load Rating of These Wheels?

Each finished wheel weighs 15.6 kg and carries a stated load rating of 1,000 kg. The forged monoblock construction combines the center, spokes and barrel into a single aluminum body.

3. What Is the Difference Between Gloss Silver and Polished Aluminum?

Gloss Silver uses a metallic color coating with a transparent clear coat, creating a consistent reflective appearance. Polished aluminum achieves its metallic reflection through surface refinement of the aluminum itself. This wheel uses the coated Gloss Silver finish.

4. Why Does the Production Record List a 71.6 mm Center Bore?

The recorded production dimension is 71.6 mm, while commonly published Jeep Grand Cherokee WK2 references list 71.5 mm. The actual hub diameter and mounting fit should be verified before installation rather than assuming the recorded measurement matches every WK2 configuration.

5. What Wheel Nuts Are Required for This Design?

The wheel features a 15×34×60° taper-seat profile. Mounting hardware must match the specified seat geometry and the vehicle's thread requirements. Confirm fastener compatibility before installation.

6. Can the Wheel Dimensions and Finish Be Customized?

Wheel widths, offsets, center bores, mounting specifications and surface finishes can be discussed for different vehicle requirements. The deep-concave five-spoke design can also be adapted to individual wheel projects.

7. How Long Does Production Take?

The recorded production schedule for this forged monoblock project is 25 days, including CNC machining, Gloss Silver coating, dimensional inspection and dynamic balancing. Shipping transit and any additional design revisions are separate from the production schedule.
