20×9.5 / 20×11.5 Forged Monoblock Wheels for 2024 Ferrari SF90 Stradale (F173) – Full Gloss Black Geometric Mesh 5×114.3

Engineering Notes

XXINGTU’s engineers want to highlight three details that define this build.

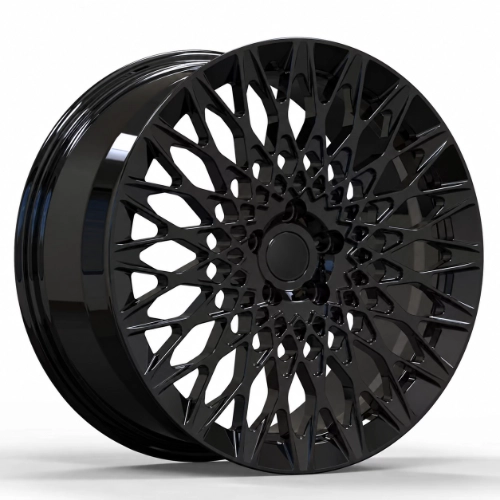

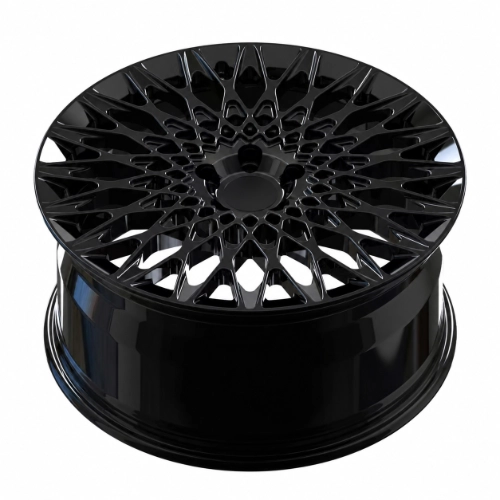

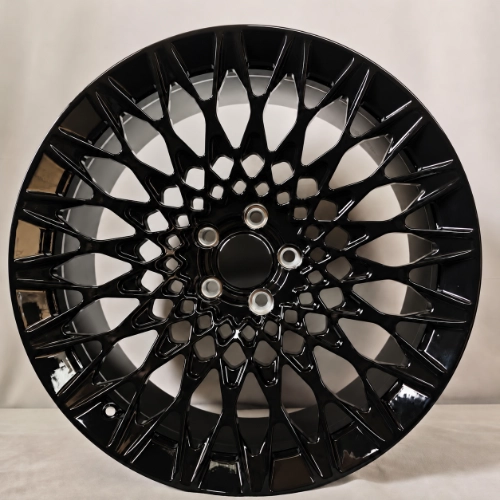

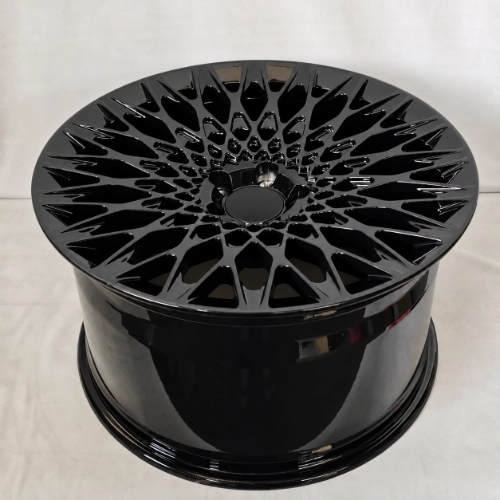

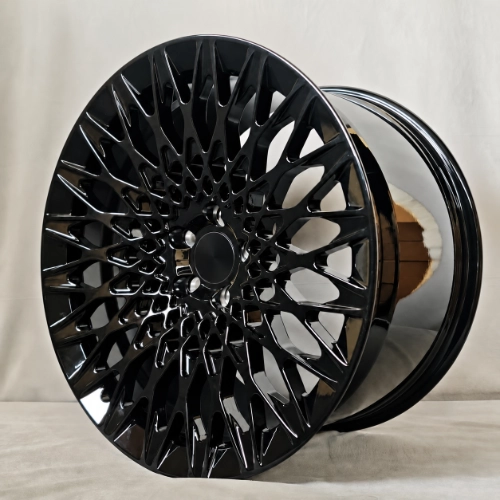

Geometric Mesh Forged Monoblock Design

The 20-inch forged monoblock wheels feature an intricate network of intersecting spokes, with angular branches and recessed openings creating a layered geometric pattern across the wheel face. The closely arranged sections give the design a distinctive mesh appearance, while the open spaces reveal depth between the hub and outer rim.

Each wheel is CNC-machined from a single forged aluminum blank, integrating the center, mesh spokes and barrel into one continuous structure. The geometric openings form part of the forged wheel body rather than a separate decorative overlay, preserving the detailed spoke arrangement within the monoblock construction.

The staggered configuration pairs a 20×9.5 front wheel with a wider 20×11.5 rear wheel. Both share the same mesh styling, while their individual face profiles accommodate the different front and rear dimensions. Each wheel carries a rated load capacity of 950 kg.

Full Gloss Black Finish

Full Gloss Black brings a continuous reflective appearance to the intricate mesh design, emphasizing the contrast between the raised spoke edges and deeply recessed geometric openings.

The dense spoke arrangement creates numerous narrow channels and intersecting surfaces. Consistent surface preparation and controlled coating application help maintain even color depth and gloss across these details, including the center, outer rim and barrel.

A transparent gloss clear coat completes the finish, adding surface protection while preserving the reflective appearance of the black spoke network. The forged monoblock construction and single-color finishing process follow a 25-day production schedule.

Staggered Wheel Specifications for the Ferrari SF90

The front wheels measure 20×9.5 with an ET42 offset, while the rear wheels use a 20×11.5 configuration with ET34. Both share a 5×114.3 bolt pattern, 67.1 mm center bore and 15×32×60° taper-seat mounting specification.

The different widths and offsets establish the front and rear wheel geometry, allowing the mesh face and barrel proportions to vary between the two axles while retaining a consistent design.

These dimensions represent the featured Ferrari SF90 Stradale project. Vehicle compatibility depends on the specific hub configuration, mounting hardware, brake-caliper clearance and selected tire sizes.

From Design to Delivery

• PCD, center bore and front/rear offset dimensions inspected
• 15×32×60° taper-seat profile checked
• Front and rear specifications verified separately
• Wheel weight checked against the 15.1 kg specification-plate value
• Radial and lateral runout inspected
• Mesh-spoke machining and gloss black coating coverage inspected
• Dynamic balancing completed for every wheel

Result

The completed wheel set features a finely detailed geometric mesh face, with intersecting spokes forming a series of layered openings across the center and outer sections. The Full Gloss Black finish brings out the contrast between the narrow spoke edges and recessed surfaces, giving the 20-inch wheels a distinctive sense of depth.

The wider 20×11.5 rear wheel creates a more substantial profile alongside the 20×9.5 front configuration. Both retain the same intricate mesh pattern, bringing a coordinated appearance to the staggered forged monoblock set developed for the Ferrari SF90 Stradale.

Building a Ferrari SF90 Stradale or another high-performance vehicle that requires a precision staggered wheel package?

XINGTU manufactures forged wheels according to your actual hub, brake, suspension, fender and tire measurements, including separate front and rear profiles, custom offsets, high-load monoblock construction and complex mesh designs.

MOQ 1 set, DDP worldwide. Send your vehicle and tire specifications for a free fitment check.

Front & Rear Wheel Specifications

The forged wheel set features 20×9.5 ET42 front wheels and 20×11.5 ET34 rear wheels. Both share a 5×114.3 bolt pattern, 67.1 mm center bore and 15×32×60° taper-seat specification. These dimensions define the featured Ferrari SF90 Stradale wheel configuration.

Geometric Mesh Monoblock Construction

Each wheel combines the center, intersecting mesh spokes and barrel in a single forged aluminum structure. Closely arranged spoke branches and machined openings form a detailed geometric pattern, while separate front and rear profiles accommodate the staggered wheel widths.

Full Gloss Black Surface Finish

The Full Gloss Black coating covers the geometric mesh face, recessed channels, outer rim and barrel. A protective clear coat completes the reflective surface, maintaining a consistent appearance across the narrow spokes and intersecting sections.

FAQs

1. Will These Forged Wheels Fit My Ferrari SF90 Stradale?

These wheels feature a staggered 20×9.5 front and 20×11.5 rear configuration, with ET42 and ET34 offsets respectively. Fitment depends on your vehicle's hub dimensions, brake clearance, mounting hardware and selected tire sizes. Confirm these details before finalizing the wheel specifications.

2. Why Are the Front and Rear Wheel Widths Different?

The staggered configuration uses a 9.5-inch-wide front wheel and an 11.5-inch-wide rear wheel, both with a 20-inch diameter. This arrangement allows different front and rear tire widths while maintaining a coordinated geometric mesh design across the set.

3. How Are the Geometric Mesh Spokes Constructed?

The wheel features a forged monoblock aluminum structure. CNC machining forms the intersecting mesh spokes, recessed openings and detailed contours directly within the wheel body, without a separate decorative face plate or bolted center assembly.

4. What Are the Wheel Load Rating and Mounting Specifications?

Each wheel carries a rated load capacity of 950 kg. The mounting configuration includes a 5×114.3 bolt pattern, 67.1 mm center bore and 15×32×60° taper-seat specification. Compatible mounting hardware and vehicle fitment should be confirmed before installation.

5. How Should I Maintain the Full Gloss Black Finish?

Clean the wheels with a mild, pH-neutral wheel cleaner and a soft microfiber cloth or brush. Pay attention to the narrow openings between the mesh spokes, where brake dust and road contaminants may accumulate. Avoid abrasive cleaning products that could scratch the glossy surface.

6. Can I Customize the Wheel Dimensions or Finish?

Yes. Wheel widths, offsets, spoke profiles and surface finishes can be discussed for different vehicle configurations. Share your vehicle details, preferred wheel dimensions and design references to explore a custom forged wheel project.
