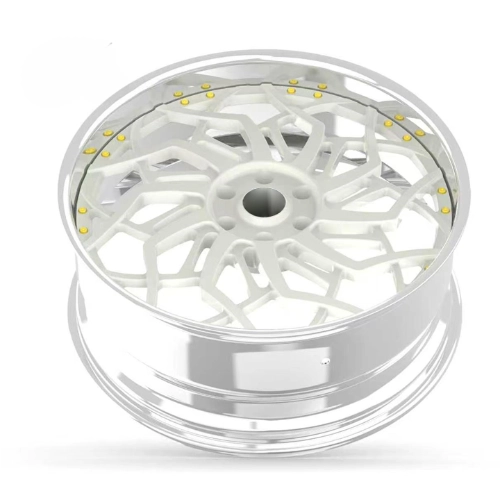

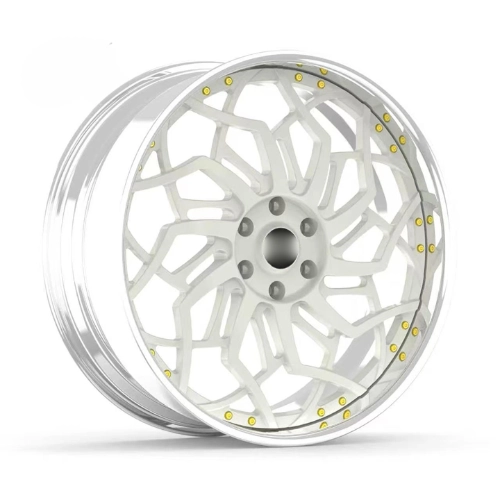

2009 Cadillac Escalade — Cream White Web-Spoke 2-Piece Forged with Chrome Lip & Gold Hardware (24")

Engineering Notes

Forged center, separate barrel and functional hardware form the underlying architecture.

6061-T6 aluminum carries the web-spoke geometry through the center before the component is joined to the separately forged barrel. Stainless fasteners secure the assembly at the perimeter, with controlled torque followed by pressure testing to verify the seal.

Gold hardware therefore has a legitimate structural location in the design. Color simply makes that joint more visible.

CB78.1 establishes the hub-centric interface, while the completed wheel carries a published 1,000 kg load rating.

Organic Geometry Changes the Scale of the Face

Straight radial spokes would make a 24-inch center feel larger and more rigid.

Branching web sections do something different. Spokes divide, reconnect and create smaller negative spaces across the face, breaking the diameter into a more intricate pattern.

Cream White supports that geometry particularly well. Lower reflection keeps the web readable and prevents the center from competing with the much brighter outer rim.

Chrome Defines the Outer Boundary

Mirror chrome is concentrated where reflection has the greatest visual effect.

CNC polishing prepares the barrel before the metal enters the copper, nickel and chrome sequence. Strong highlights then form around the perimeter, giving the wheel a bright outer boundary against the quieter center.

Chrome becomes part of the wheel’s depth perception rather than simply a luxury finish.

Hardware Becomes Part of the Design Language

Gold fasteners form a narrow ring between two larger finish areas.

Their location matters. Instead of placing gold across spokes or caps, the color follows the genuine assembly joint and highlights how the wheel is built.

That relationship gives custom buyers three meaningful visual decisions—center finish, barrel finish and hardware treatment—without forcing unrelated graphics onto the wheel.

From Design to Delivery

Inspection addresses three different production concerns: dimensional accuracy of the forged components, torque and sealing at the two-piece joint, and finish consistency across powder-coated and electroplated surfaces.

• CMM dimensional inspection (PCD / CB / runout)
• Dynamic balancing on every wheel
• 2-piece hardware torqued to spec & pressure-tested for seal
• Forged 6061-T6, hub-centric machining verified
• Multi-layer chrome plating adhesion & mirror QC before packing
• Cream white powder coat cure & consistency verified

Result

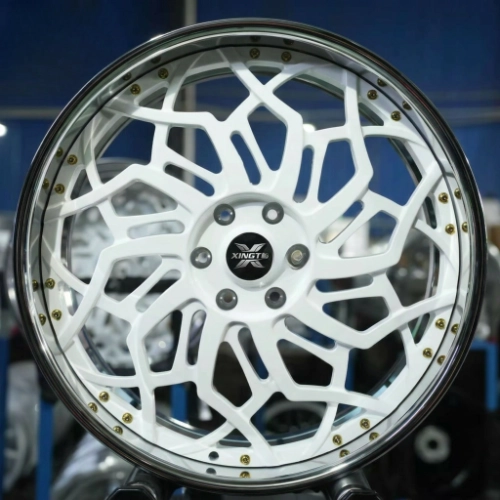

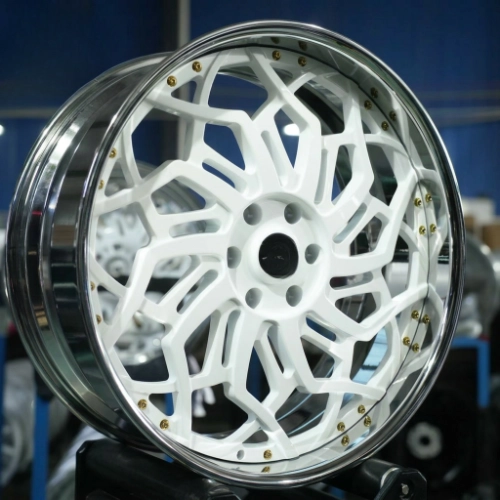

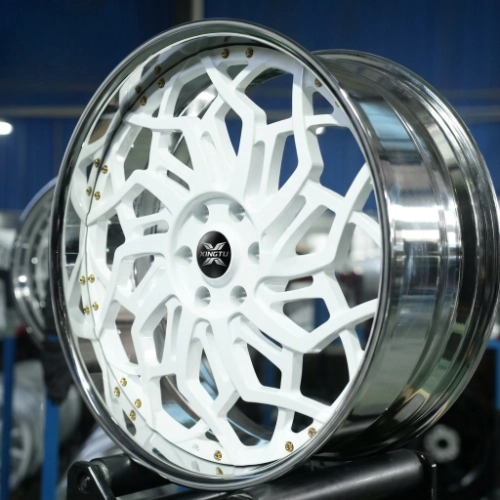

Cream White makes the web geometry the first detail noticed at close range. Gold hardware then establishes a precise ring around the center, while chrome gives the 24-inch perimeter the strongest reflection.

Every finish follows a real component boundary.

That correspondence between appearance and construction gives the wheel more commercial value than a conventional three-color design. Bespoke styling is immediately visible, while genuine two-piece forging and a 1,000 kg rating remain clear underneath it.

Run an Escalade, Suburban, Yukon Denali, or any full-size luxury SUV on the GMT900 / GMT-K2 / T1 platform?

 XINGTU forges to your exact fitment—custom color, hardware, and lip finish options all available.

MOQ 1 set, DDP worldwide. Send your specs for a free fitment check.

Hub-Centric Machining Starts at CB78.1

Center bore is machined to 78.1 mm around the confirmed Cadillac hub interface.

Accurate hub location remains independent from the spoke pattern, diameter or finishing choices.

Functional Hardware Cannot Be Treated as Decorative Trim

Gold fasteners belong to the two-piece assembly.

Material specification, tightening requirements and sealing remain engineering considerations even when another hardware color is selected.

Two-Piece Construction Creates Natural Custom Finish Zones

Center and barrel already exist as separate components.

Different paint, plating, polishing or hardware treatments can therefore follow genuine component boundaries instead of relying on artificial masking across one forged shell.

24-Inch Diameter Needs a Defined Structural Reference

Large diameter creates presence but says little about structural capacity.

A 1,000 kg per-wheel rating gives full-size SUV buyers a specific figure behind the finished wheel.

Face Design Can Be Retained Without Copying Fitment

Web-spoke geometry can be adapted to another Escalade or full-size SUV, but final dimensions still need to correspond with the intended vehicle.

Finish Choices Can Change Independently

Cream White, chrome and gold represent one completed combination rather than a fixed package.

Alternative center colors, lip treatments and hardware finishes can be developed while preserving the same two-piece construction.

1. Are the gold fasteners functional?

Yes. They join the forged center and barrel and are not decorative rivets.

2. How is the two-piece assembly checked after fastening?

Hardware is tightened to the required specification and the completed joint is pressure-tested for sealing.

3. Why does Cream White work well with the web-spoke face?

Lower reflection keeps the branching geometry visible and prevents the large 24-inch center from becoming visually overloaded.

4. Is the outer rim chrome-painted?

No. Electroplated chrome is applied after metal preparation and polishing.

5. What gives the chrome finish its mirror depth?

Surface preparation followed by copper, nickel and final chrome layers creates the reflective metal finish.

6. What load rating is specified?

1,000 kg per wheel.

7. What center bore is used?

78.1 mm.

8. Can hardware color be changed?

Yes, provided the selected fastener finish remains suitable for the functional assembly hardware.

9. Can the web center be paired with a polished rather than chrome barrel?

Different component finishes can be specified because center and barrel are physically separate.

10. Can the same design be made for another full-size SUV?

Face design can be adapted, while final hub dimensions, width and wheel position need to be confirmed for the intended vehicle.
