18×8.0 / 18×9.0 Forged Monoblock Wheels for BMW 430i – Gloss Platinum Gold Staggered Split-Spoke Design 5×120

Engineering Notes

XINGTU’s engineers want to highlight three details that define this build.

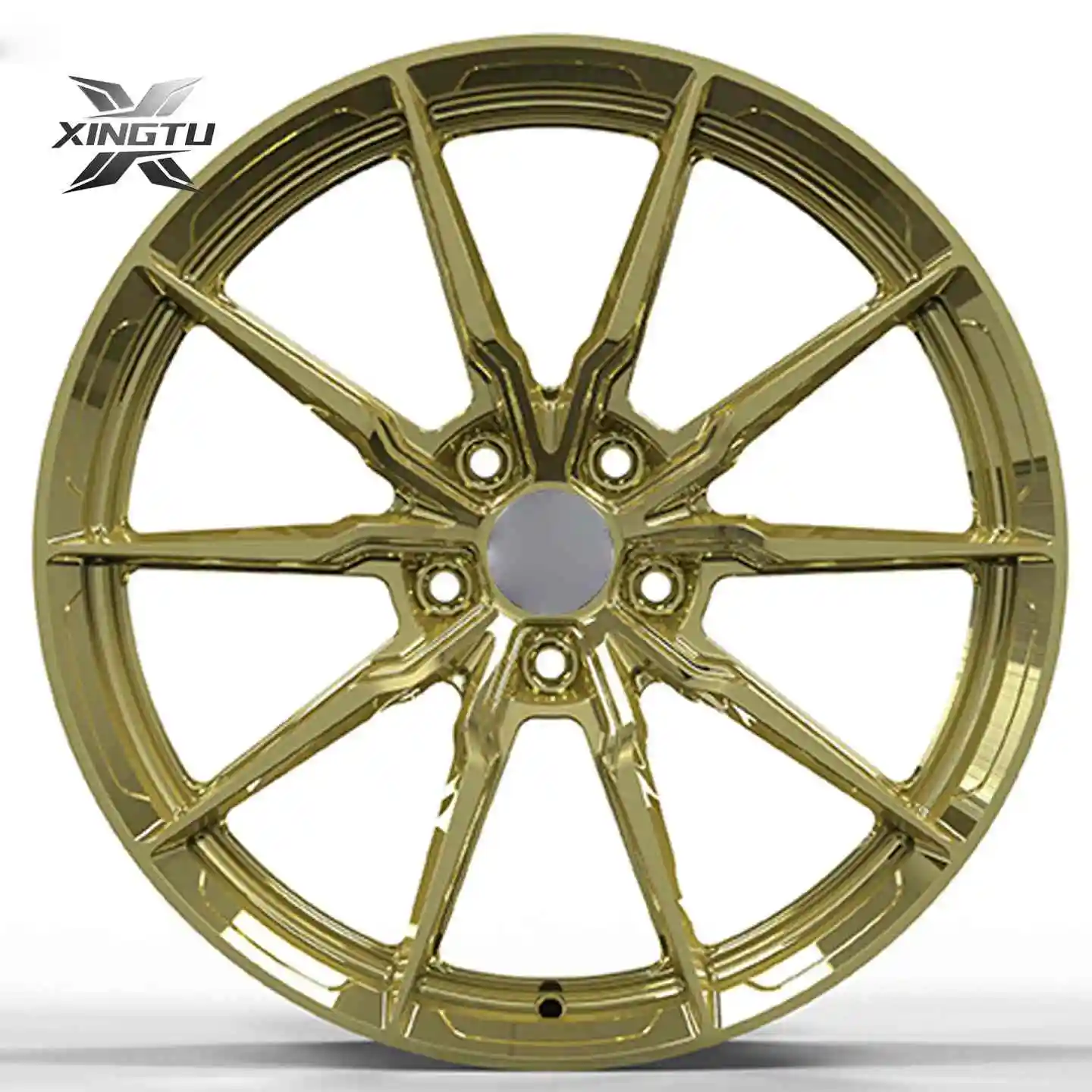

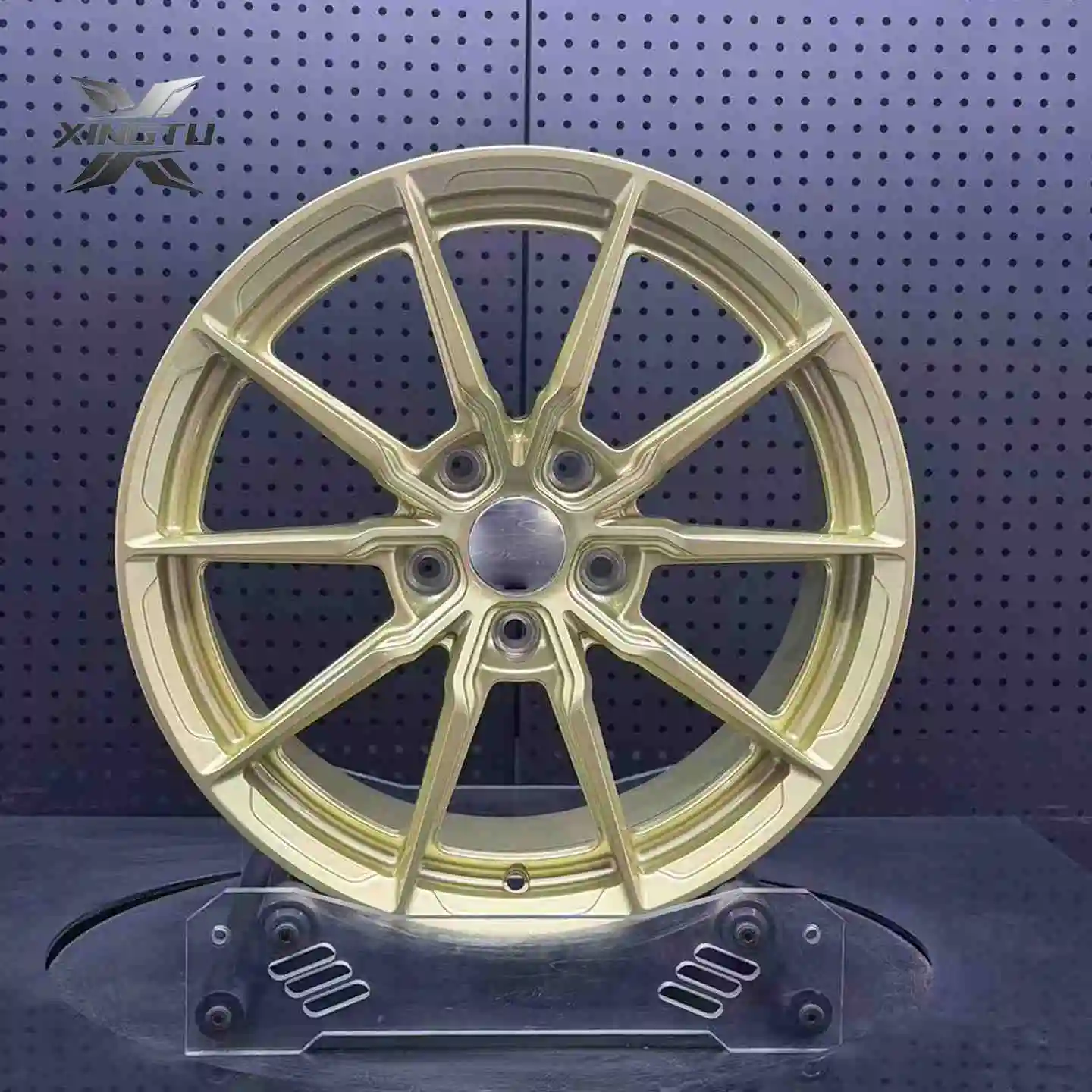

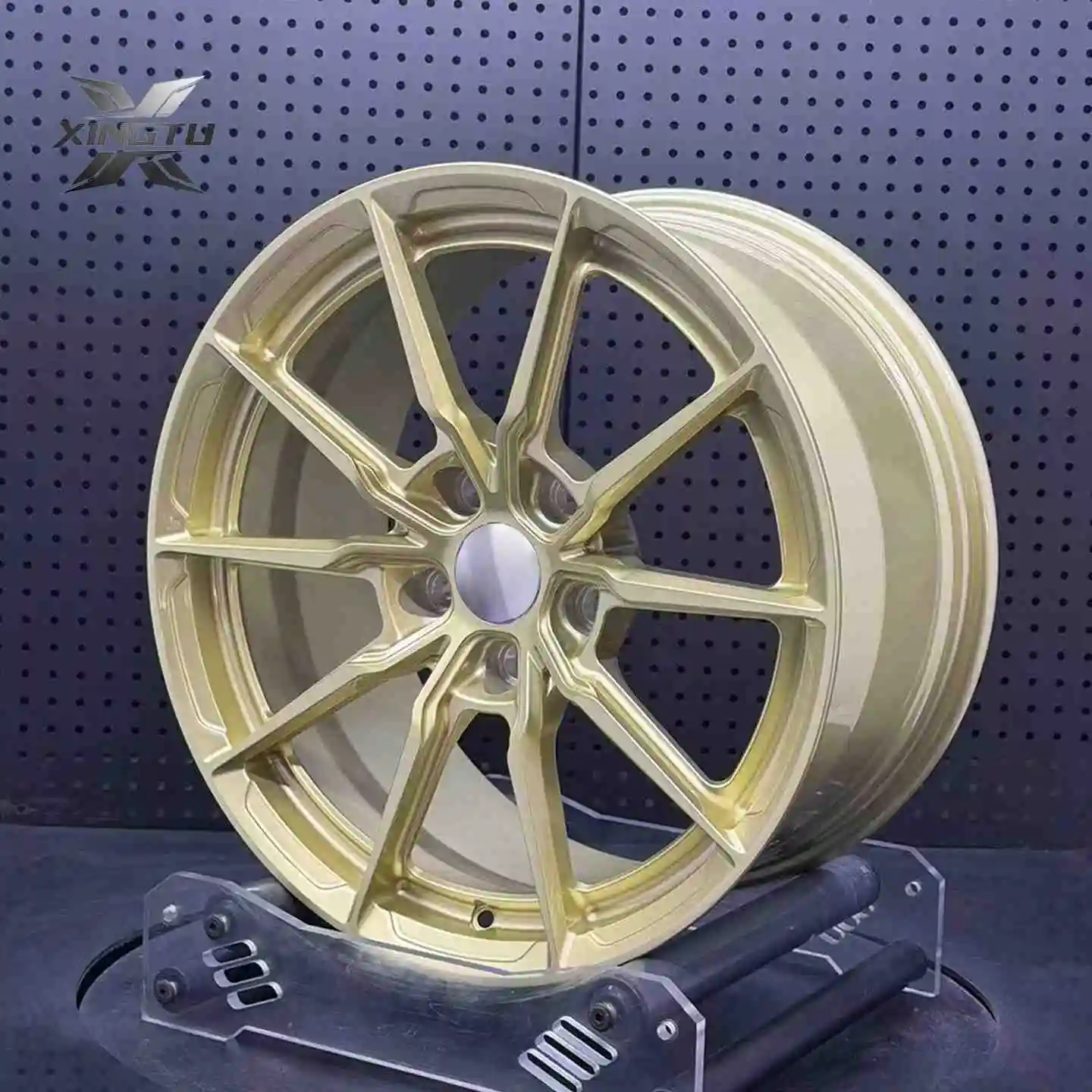

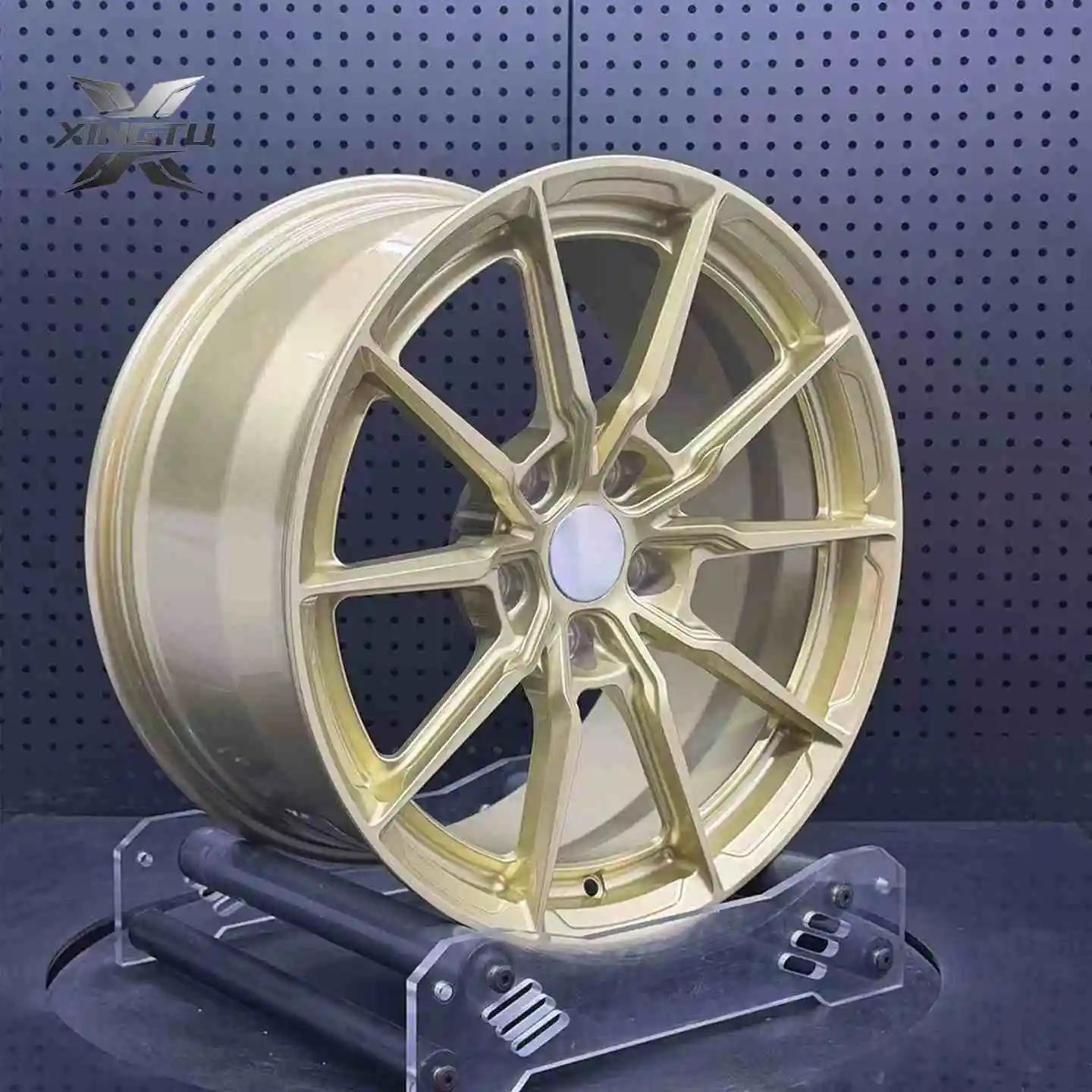

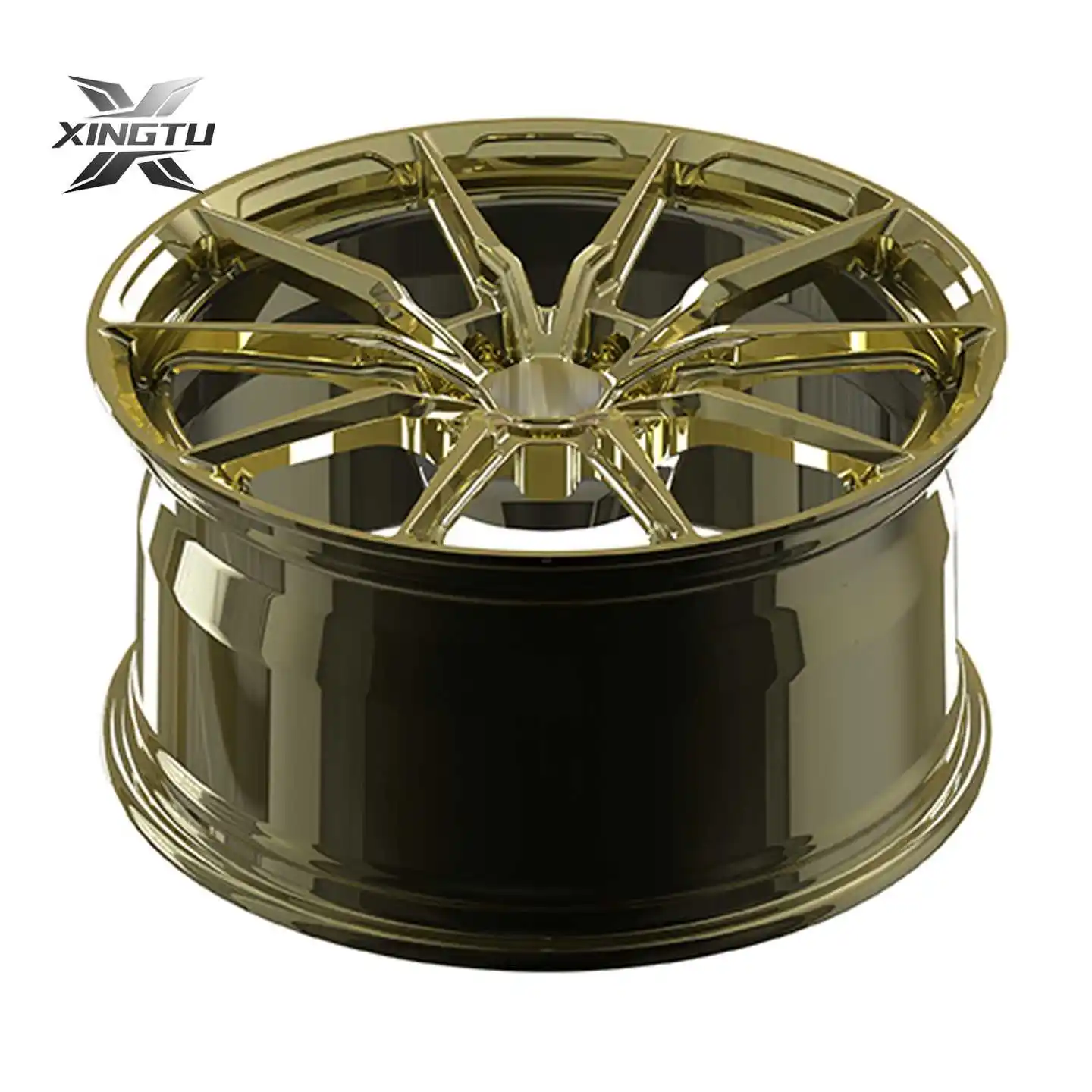

Staggered Split-Spoke Construction

The 18-inch forged monoblock wheels feature a staggered configuration, combining an 18×8.0 front wheel with an 18×9.0 rear wheel. Both share the same split-spoke styling, maintaining a consistent appearance while accommodating different front and rear widths.

The design features slender, angular spokes that branch outward from the central hub, with sculpted transitions creating depth between the spoke faces and recessed sections. The open layout also provides clear views of the brake area, while precision CNC machining defines the narrow channels and detailed contours within the forged aluminum body.

The monoblock construction integrates the center, spokes and barrel into a single structure without separate bolted joints. The production specifications record a wheel weight of 11 kg and a rated load capacity of 800 kg per wheel.

Gloss Platinum Gold Finish

The Gloss Platinum Gold finish gives the split-spoke design a warm metallic appearance, with reflective surfaces that emphasize the narrow spoke edges and sculpted contours.

The combination of elongated spokes, recessed channels and curved transitions creates variations in how light reflects across the wheel face. Careful surface preparation and consistent coating coverage maintain the color and gloss throughout these detailed areas, including the outer rim and barrel.

The reflective finish complements the intricate geometry without additional decorative elements, allowing the spoke design and metallic color to define the wheel's overall appearance.

Precision Fitment for the BMW 430i

The front wheels measure 18×8.0 with an ET30 offset, while the rear wheels use an 18×9.0 configuration with ET38. Both feature a 5×120 bolt pattern, 72.6 mm center bore and 15×32×60° taper-seat mounting specification.

These dimensions establish the production configuration for this BMW 430i forged wheel project. The different widths and offsets define the front and rear wheel positions, while the common mounting specifications maintain consistency across the set.

From Design to Delivery

• Front 18×8.0 and rear 18×9.0 dimensions inspected
• ET30 front and ET38 rear offsets checked
• 5×120 PCD and 72.6 mm center bore verified
• 15×32×60°taper-seat profile inspected
• Wheel weight checked against the stated 11 kg value
• Radial and lateral runout inspected
• Split-spoke geometry and outer-rim transitions checked
• Gloss Platinum Gold color consistency inspected under controlled lighting
• Dynamic balancing completed for every wheel

Result

The completed wheel set brings together the clean proportions of an 18-inch staggered configuration and the intricate character of a split-spoke design. Narrow angular spokes extend across the wheel face, while sculpted transitions around the hub and outer rim create a layered appearance.

Gloss Platinum Gold enhances these details with a warm, reflective finish that changes subtly across the curved surfaces. The wider rear wheels complement the front design, creating a coordinated forged monoblock set with distinct front and rear proportions.

Looking for a custom staggered forged wheel set for your BMW 430i?

  XINGTU can develop front and rear wheel specifications around your actual vehicle data, brake clearance, suspension setup and tire combination. Custom widths, offsets, center bores, finishes and split-spoke designs are available.

MOQ 1 set, DDP worldwide. Send your vehicle year and current wheel or tire data for a free fitment check.

Front & Rear Wheel Specifications

The production configuration features 18×8.0 ET30 front wheels and 18×9.0 ET38 rear wheels. Both share a 5×120 bolt pattern, 72.6 mm center bore and 15×32×60° taper-seat specification, forming the mounting geometry of this BMW 430i project.

Vehicle Fitment Considerations

The dimensions correspond to the featured BMW 430i wheel configuration rather than every model year or chassis variant. The vehicle's hub dimensions, brake clearance, suspension geometry, tire sizes and mounting hardware should be confirmed before installation.

Gloss Platinum Gold Surface Finish

The highly reflective Platinum Gold finish covers the spoke faces, recessed channels, outer rim and barrel. Consistent surface preparation and coating application help maintain an even metallic appearance, particularly around the narrow spoke transitions and machined details.

FAQs

1. Are These Forged Wheels Compatible with All BMW 430i Models?

These wheels feature a staggered 18×8.0 front and 18×9.0 rear configuration with a 5×120 bolt pattern. Fitment may vary by model year and vehicle configuration. Please confirm your BMW 430i's hub dimensions, brake clearance, tire sizes and mounting requirements before installation.

2. What Are the Weight and Load Rating of These Forged Wheels?

The wheels feature a one-piece forged aluminum construction with an intricate split-spoke design. The specified wheel weight is 11 kg, with a rated load capacity of 800 kg per wheel. The monoblock structure integrates the center, spokes and barrel without separate bolted joints.

3. What Makes the Gloss Platinum Gold Finish Different?

Gloss Platinum Gold offers a warm metallic tone with a highly reflective surface. The finish accentuates the slender split spokes, sculpted contours and recessed details, creating subtle variations in reflection across the wheel face.

4. Can I Choose a Different Color or Finish?

Yes. Custom finish options can be discussed to complement your vehicle's appearance, including different colors and gloss levels. Share your preferred finish or reference images to explore suitable options for your forged wheel design.

5. What Wheel Bolt Specifications Are Required?

These wheels use a 15×32×60° taper-seat mounting specification, with a 5×120 bolt pattern and 72.6 mm center bore. Always use compatible wheel bolts and verify the mounting hardware against your vehicle's requirements before installation.

6. How Long Does Production Take?

The production lead time for this forged monoblock wheel configuration is approximately 25 days after design and specifications are confirmed. This covers machining, surface finishing and quality inspection. Shipping time varies by destination.
