22×10.5 Forged Monoblock Wheels for Audi – Matte Black Deep-Concave Split 5-Spoke 5×112

Engineering Notes

XINGTU’s engineers want to highlight three details that define this build.

Deep-Concave Split Five-Spoke Design

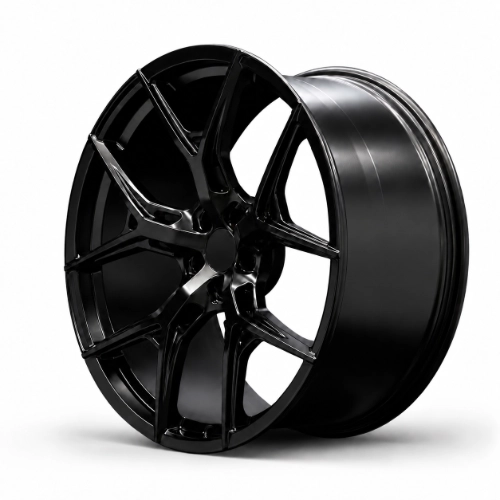

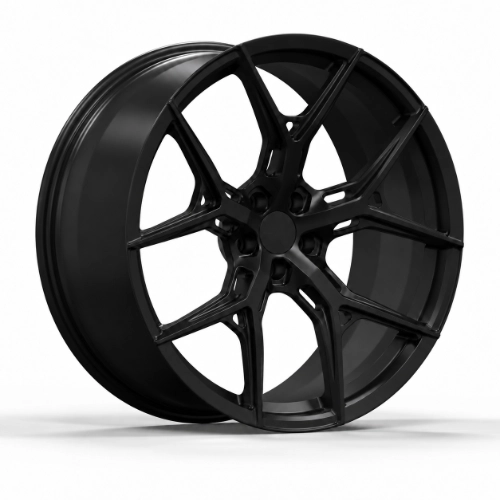

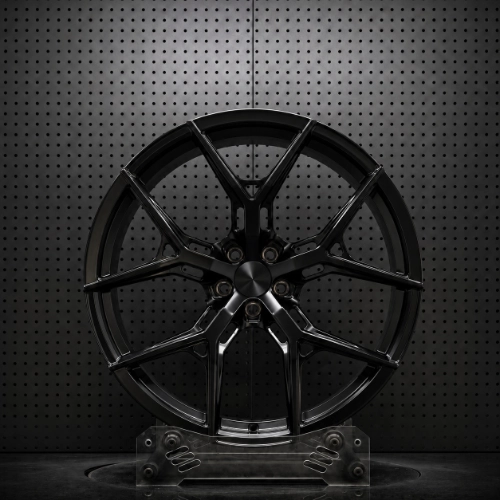

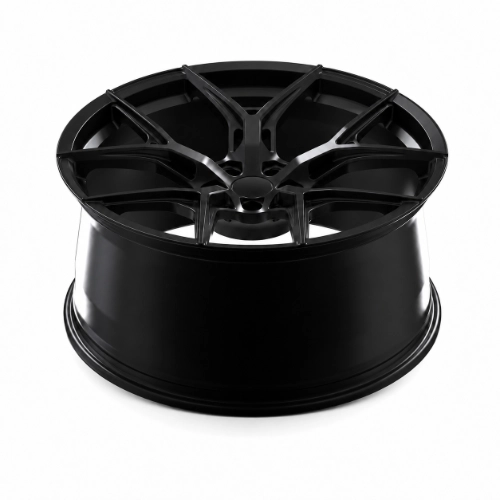

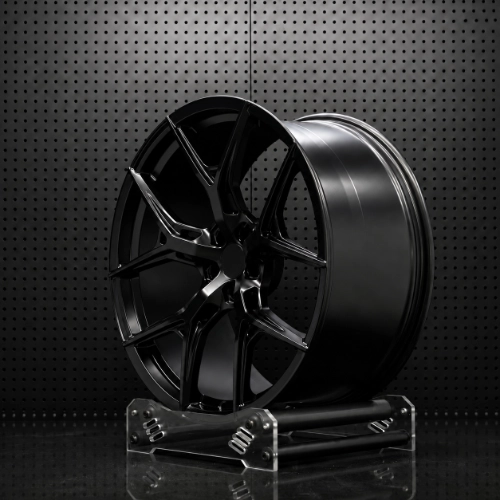

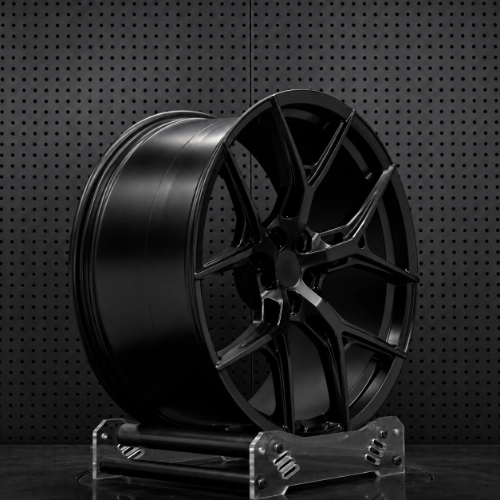

The 22×10.5 forged monoblock wheel features a pronounced concave profile, with five angular spokes extending from the recessed center toward the outer rim. Each spoke divides into sharply defined sections, creating an open, layered appearance across the wheel face.

Rectangular and triangular openings introduce additional depth around the spoke roots and outer sections. These machined features remove material from selected areas while preserving the continuous forged aluminum structure. The hub, spokes and barrel form a single wheel body without separate bolted center components.

The finished wheel weighs 15 kg and carries a rated load capacity of 850 kg, combining the substantial proportions of a 22-inch wheel with detailed CNC-machined geometry.

Matte Black Finish with Red Lettering

The Matte Black finish gives the complex spoke arrangement a consistent, low-reflection appearance, emphasizing the sharp transitions between the raised spoke surfaces and recessed openings.

Narrow channels and angular edges require careful surface preparation to maintain uniform coating coverage. A small red lettering detail introduces a contrasting accent without dominating the wheel face.

The red lettering is applied after the black coating has cured, followed by additional finishing and inspection. This multi-stage process forms part of the 45-day production schedule, allowing time for coating, detailing and quality checks.

22-Inch Wheel Dimensions & Fitment

The wheel measures 22×10.5 with an ET12 offset, 5×112 bolt pattern and 66.5 mm center bore. Its mounting configuration also includes a 15×32×R12.8 ball-seat specification.

The wide barrel and ET12 offset establish the wheel's mounting position, while the deep-concave spoke profile gives the design its distinctive face geometry.

These dimensions define the featured Audi wheel configuration. Compatibility with a particular vehicle depends on the hub, mounting hardware, brake clearance, suspension geometry and selected tire size.

From Design to Delivery

• PCD, center bore and ET dimensions inspected
• 15×32×R12.8 ball-seat profile checked
• Wheel weight verified at 15 kg
• Radial and lateral runout inspected
• Split-spoke geometry and weight-reduction openings checked
• Matte black coating coverage inspected under controlled lighting
• Red-letter position and edge condition checked
• Dynamic balancing completed for every wheel

Result

The completed 22-inch wheel features a pronounced deep-concave face, with sharply divided five-spoke sections and angular machined openings that add depth to the design. Its wide proportions and recessed center create a distinctive profile, while the forged monoblock structure keeps the wheel face and barrel within a continuous aluminum body.

The Matte Black finish brings the different surfaces together, with subtle red lettering providing a restrained contrast. The finished wheel retains the 22×10.5 ET12 configuration, with a weight of 15 kg and a rated load capacity of 850 kg.

Need custom forged wheels for an Audi but already have your own fitment data?

 XINGTU can manufacture according to customer-supplied dimensions while providing an independent engineering review of the hub, brake, suspension and tire clearances. Custom sizes, offsets, ball-seat machining and personalized finishes are available.

MOQ 1 set, DDP worldwide. Send your vehicle data and design requirements for a free fitment check.

22-Inch Wheel Specifications

The wheel features a 22×10.5 size with ET12 offset, 5×112 PCD, 66.5 mm center bore and 15×32×R12.8 ball-seat mounting configuration. These dimensions define the featured production specification for this Audi forged wheel design.

One-Piece Forged Aluminum Structure

The deep-concave center, split five-spoke face and barrel form a continuous forged monoblock construction. CNC-machined rectangular and triangular openings add definition to the spoke layout without a separate decorative face plate or bolted center assembly.

Matte Black & Red Lettering Finish

A uniform Matte Black coating covers the wheel face, recessed channels and barrel. Red lettering adds a subtle contrasting detail, with separate application and finishing stages to maintain its appearance against the matte surface.

FAQs

1. Will These 22-Inch Forged Wheels Fit My Audi?

These wheels feature a 22×10.5 size, ET12 offset, 5×112 bolt pattern and 66.5 mm center bore. Fitment depends on your Audi model, brake configuration, suspension clearance and tire specifications. Please confirm your vehicle details before installation.

2. What Are the Weight and Load Rating of These Wheels?

Each wheel weighs 15 kg and has a rated load capacity of 850 kg. The one-piece forged aluminum construction integrates the center, spokes and barrel, with machined openings incorporated into the split five-spoke design.

3. What Makes the Deep-Concave Design Distinctive?

The recessed center creates a pronounced depth between the hub and outer rim. Five angular spokes divide toward the rim, while rectangular and triangular openings add definition to the wheel face.

4. What Wheel Bolts Are Required for Installation?

The wheel uses a 15×32×R12.8 ball-seat mounting specification. Wheel bolts must match the seat profile and your vehicle's thread requirements. Confirm the mounting hardware and hub compatibility before installation.

5. How Should I Maintain the Matte Black Finish and Red Lettering?

Use a mild, pH-neutral wheel cleaner and a soft microfiber cloth. Avoid abrasive pads, harsh chemicals and gloss-enhancing polishes that may alter the matte surface. Clean carefully around the red lettering to help preserve its edges and finish.

6. How Long Does Production Take?

The production lead time for this wheel configuration is approximately 45 days after design and specifications are confirmed. The schedule includes CNC machining, Matte Black coating, red lettering application, finishing and quality inspection. Shipping time varies by destination.
