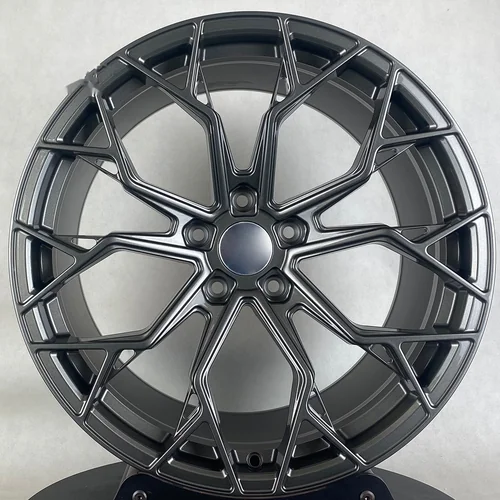

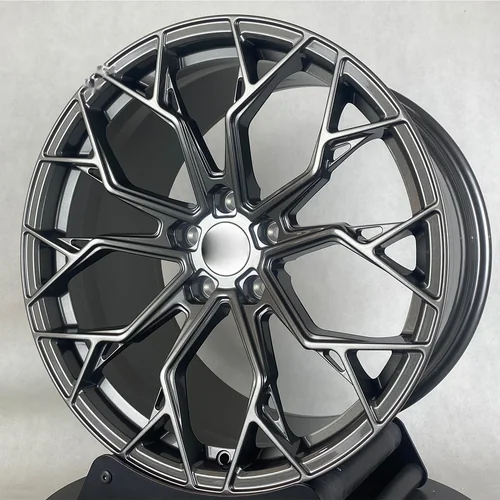

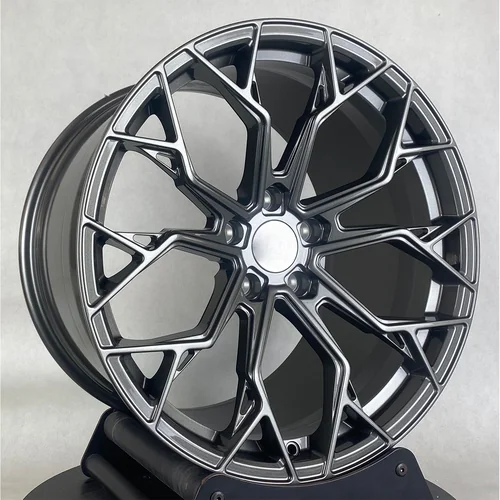

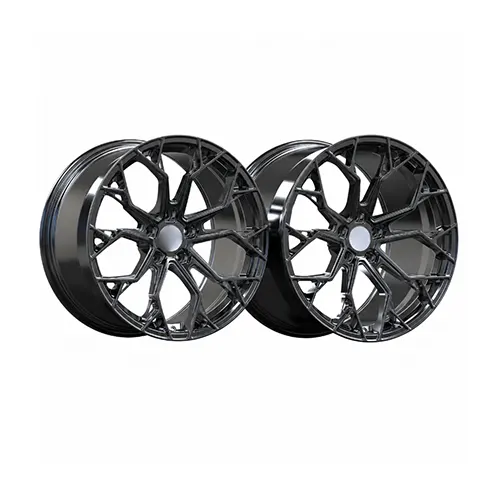

2016 Chevrolet Corvette C7 Z06 — Staggered Gloss Gunmetal Forged Monoblock (19" Front / 20" Rear)

Engineering Notes

XINGTU's engineers gave special attention to the 20x12 rear. At 12 inches wide, the spoke geometry must resist both high lateral cornering loads and the torque spikes a Z06's supercharged LT4 delivers — so XINGTU's engineers ran the Y-spoke web from a forged 6061-T6 billet, preserving an unbroken grain flow from the hub face out to the rim for maximum fatigue strength.

XINGTU's engineers also verified the 15×32×60° taper lug seat against the C7 Z06 OEM standard — this is critical, because the wrong seat profile prevents correct clamping torque and is a direct safety risk. The 70.3 mm center bore is machined hub-centric to the GM platform, so the wheel carries load on the hub, not the studs. Net result: a 13 kg rear holding an 850 kg-per-corner rating while staying lighter than the cast OEM Z06 wheel.

From Design to Delivery

• CMM dimensional inspection (PCD / CB / runout)
• Dynamic balancing on every wheel
• Forged 6061-T6, hub-centric machining verified
• Finish QC under controlled lighting before packing

Result

A factory-correct staggered set that transforms the Z06's stance—the gloss gunmetal shifts beautifully with light, and the wide 20x12 rear fills the arch exactly as intended. Lighter than OEM, fully load-rated, and bolt-on ready.

Run a C7, C8, or any platform?

 XINGTU forges to your exact fitment

MOQ 1 set, DDP worldwide. Send your specs for a free fitment check.

• Luxury & Premium Vehicles: Designed for luxury sedans, SUVs, and premium vehicles requiring enhanced appearance, refined styling, and OEM-level fitment precision.
• Performance & Track Builds: Optimized for performance vehicles where lightweight construction, structural strength, brake clearance, and handling response are critical.
• Custom Tuning Projects: Fully customizable in diameter, width, offset, bolt pattern, finish, and design to meet unique vehicle builds and individual styling requirements.
• Classic & Restomod Vehicles: Modern forged wheel solutions for classic cars, combining advanced engineering with timeless styling while preserving the vehicle’s original character.
• Show Cars & Exhibition Builds: Premium forged wheels featuring unique designs and high-end finishes, created for show-quality vehicles demanding exceptional visual impact.
• SUV & Off-Road Customization: Engineered for high-performance SUVs and customized builds requiring durability, higher load capacity, and distinctive styling.
• OEM Replacement & Upgrade: Precision-engineered replacement solutions that maintain factory-level fitment while improving appearance, performance, and driving confidence.
• Automotive Brands & Tuning Shops: Reliable custom wheel solutions for automotive brands, tuning shops, and distributors, supporting prototype development, small-batch production, and long-term supply partnerships.

1. Can you customize wheels based on my vehicle specifications?
A: Yes. We provide full customization based on vehicle model, wheel size, width, offset, bolt pattern, center bore, brake clearance, and design requirements.

2. What information do you need before starting a custom wheel project?
A: We usually require your vehicle make, model, and year, along with wheel diameter and width, bolt pattern (PCD), offset (ET), brake clearance requirements, and preferred wheel design and finish details.

3. What materials are used for forged wheels?
A: Our forged wheels are manufactured using high-strength aerospace-grade aluminum alloys, providing excellent strength-to-weight performance.

4. What finishes are available?
A: We offer a wide range of finish options, including brushed finish, polished finish, gloss black, matte finish, custom color coating, and two-tone finishes to meet different styling requirements.

5. What is the typical production lead time?
A: Production time depends on design complexity, quantity, and finishing requirements. A typical custom project usually takes 30–45 days, including engineering confirmation, machining, QC, and delivery preparation.

6. Do you support small quantity orders?
A: Yes. We support prototype development, sample orders, and small-batch production for tuning shops, distributors, and automotive brands.
